ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corona XT/Race (70-71) (TK2-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corona XT/Race (70-71) (TK2-XTR4)

TK2-XTR4

Out of stock

$505.00 USD
$624.00 USD $505.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for Toyota Corona XT/Race (70-71) is a high-performance clutch assembly designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit provides increased clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The high-quality ceramic friction materials used in the 4-pad rigid race discs deliver superior grip and heat resistance, making this clutch ideal for racing and aggressive driving applications. Its construction emphasizes rigidity and precision, offering a reliable upgrade for high-performance setups.

This clutch kit is specifically engineered for 1970-1971 Toyota Corona XT models, providing a direct replacement for stock components. It is suitable for use in street, track, or racing environments where maximum performance and durability are required. The kit includes all necessary components for installation, ensuring a straightforward bolt-on upgrade. Designed to handle increased power and aggressive driving styles, this clutch assembly is perfect for enthusiasts seeking a reliable, high-performance solution. Compatibility is optimized for vehicles with similar specifications, making it an ideal choice for race or performance-oriented builds.

Overview

ACT XT/Race Rigid 4 Pad Kit

TK2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 9.9
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1970-1971 Toyota Corona

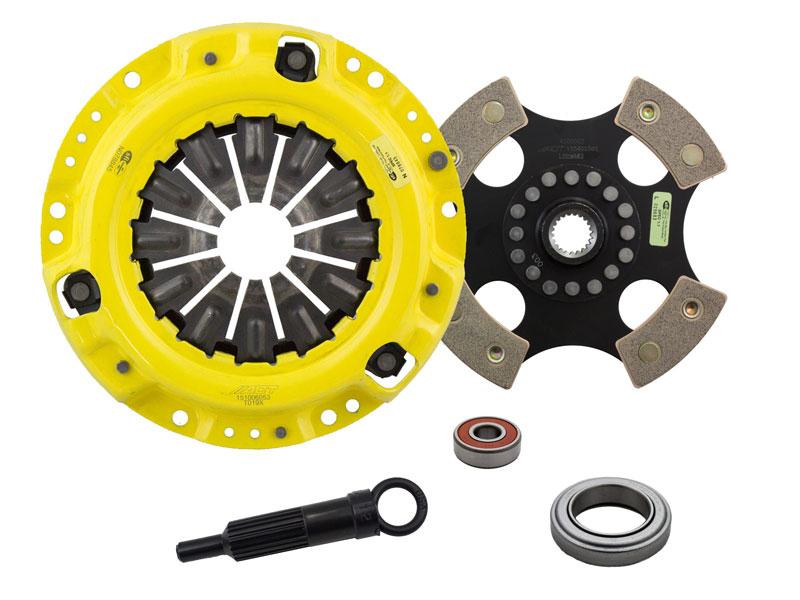

What's In The Box?

  • Clutch Friction Disc (4200003)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB005)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
