• ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTR4)
1 1

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTR4)

TL1-XTR4

Out of stock

$621.00 USD
$621.00 USD $621.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for Toyota Corolla XT/Race (1980-1987) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design and a four-stage heat-treating process. The pressure plate's precision cover stampings ensure rigidity and consistency, while the 4-pad rigid race discs utilize high-quality ceramic friction materials for superior grip and durability. This combination delivers optimal performance for aggressive street and race applications, providing reliable power transfer and improved pedal feel.

Designed specifically for 1980-1987 Toyota Corolla XT/Race models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for high-performance driving, including track use and spirited street driving, where maximum clamping force and durability are required. Installation involves replacing the existing clutch with this bolt-on kit, which includes all necessary components for a complete upgrade. Compatible with vehicles equipped with compatible engine configurations, this clutch kit ensures enhanced performance and longevity under demanding conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

TL1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.1
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1987 Toyota Corolla

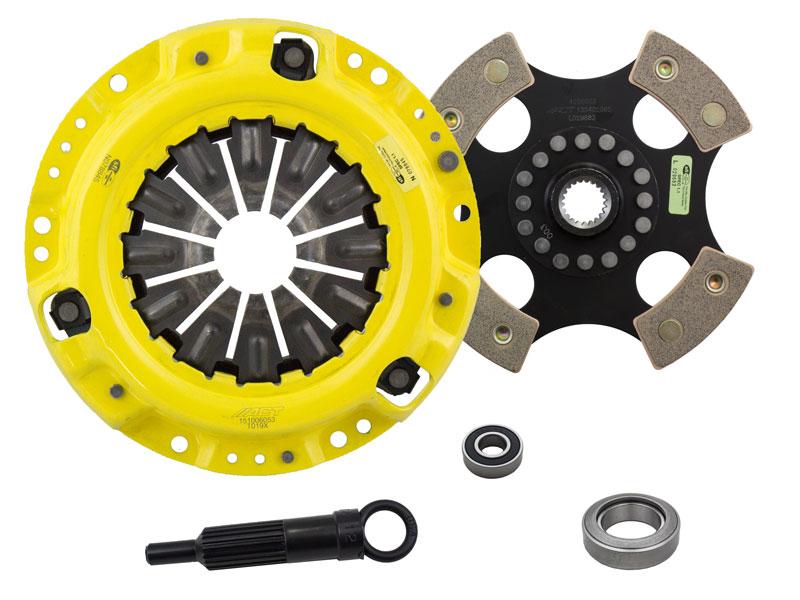

What's In The Box?

  • Clutch Friction Disc (4200003)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
