ACT XT/Race Rigid 4 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTR4)

FC2-XTR4

In stock

$525.00 USD
$648.00 USD $525.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Ford Ranger (83-84) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and enhanced clutch longevity. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 4-pad rigid race disc incorporates high-quality ceramic friction materials, providing superior grip and heat resistance. Built with precision cover stampings, the clutch components offer increased rigidity and stability during aggressive driving, making it ideal for racing or high-stress applications.

This clutch kit is specifically designed to fit 1983-1984 Ford Ranger models, compatible with the FC2-XTR4 variant SKU. It serves as a direct replacement upgrade for stock clutches, suitable for street and track use where maximum performance is required. Installation involves standard bolt-on procedures, ensuring a straightforward upgrade process. The kit includes all necessary components for a complete clutch replacement, providing reliable engagement and consistent power transfer. Perfect for enthusiasts seeking enhanced durability and performance in demanding driving scenarios, this clutch kit ensures optimal operation for the specified vehicle applications.

Overview

ACT XT/Race Rigid 4 Pad Kit

FC2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1983-1984 Ford Ranger

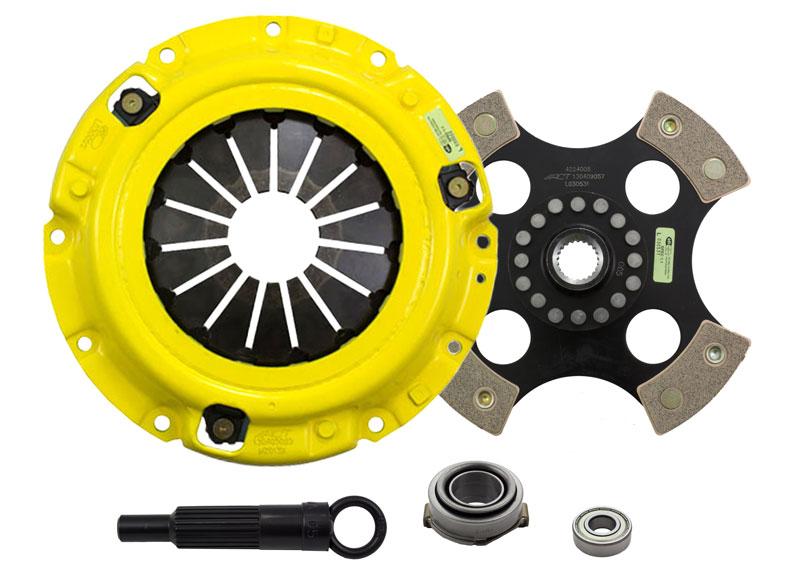

What's In The Box?

  • Clutch Friction Disc (4224005)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ013X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
