• ACT XT/Race Rigid 4 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTR4)

ZT2-XTR4

Out of stock

$546.00 USD
$674.00 USD $546.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit ZT2-XTR4 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity and stability. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications. This combination delivers reliable power transfer, improved response, and longevity under intense use.

Designed specifically for Mazda B2600 models from 1987 to 1989, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street, track, and racing use, offering increased performance and durability for high-stress driving scenarios. The installation is a bolt-on process, compatible with the original flywheel and transmission setup. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Ideal for enthusiasts seeking a robust, race-ready clutch solution, this ACT kit enhances vehicle performance while maintaining reliability during demanding driving conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

ZT2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.7
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Mazda B2600

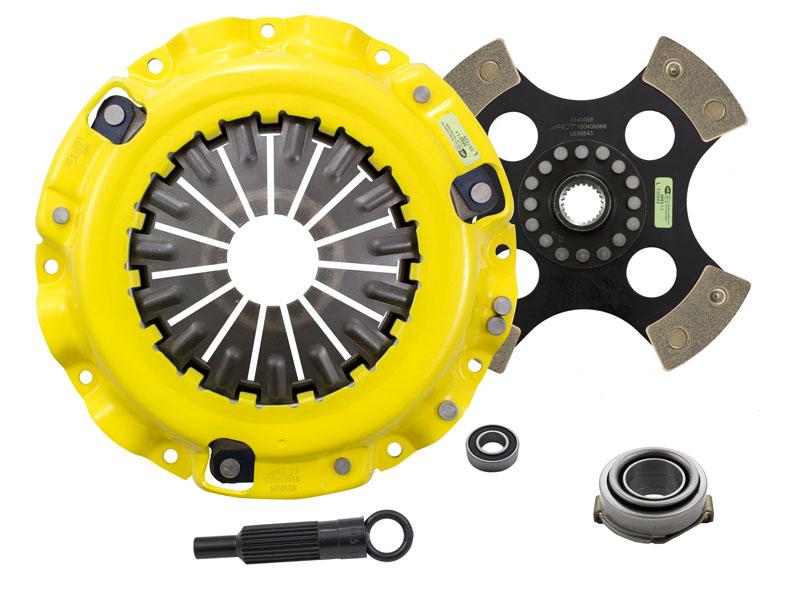

What's In The Box?

  • Clutch Friction Disc (4240008)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
