• ACT XT/Race Rigid 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTR4)

Z65-XTR4

In stock

$555.00 USD
$685.00 USD $555.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Mazda RX-7 (87-91) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The kit includes a 4-pad rigid race disc constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for aggressive driving, this clutch kit offers enhanced torque capacity and reliable engagement, making it suitable for track days, spirited driving, or high-performance applications.

Designed specifically for 1987-1991 Mazda RX-7 models, this clutch kit is a direct replacement for stock components, ensuring a straightforward installation. It is compatible with vehicles equipped with the appropriate engine and chassis configurations, offering a reliable upgrade for enthusiasts seeking improved performance. The kit is ideal for street, track, or racing use, providing a robust solution for high-stress driving scenarios. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. This clutch assembly is engineered to deliver maximum performance and longevity in demanding automotive environments.

Overview

ACT XT/Race Rigid 4 Pad Kit

Z65-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Flywheel requires counterweight (not included).
  • Product Weight (lbs.): 14.7
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1991 Mazda RX-7

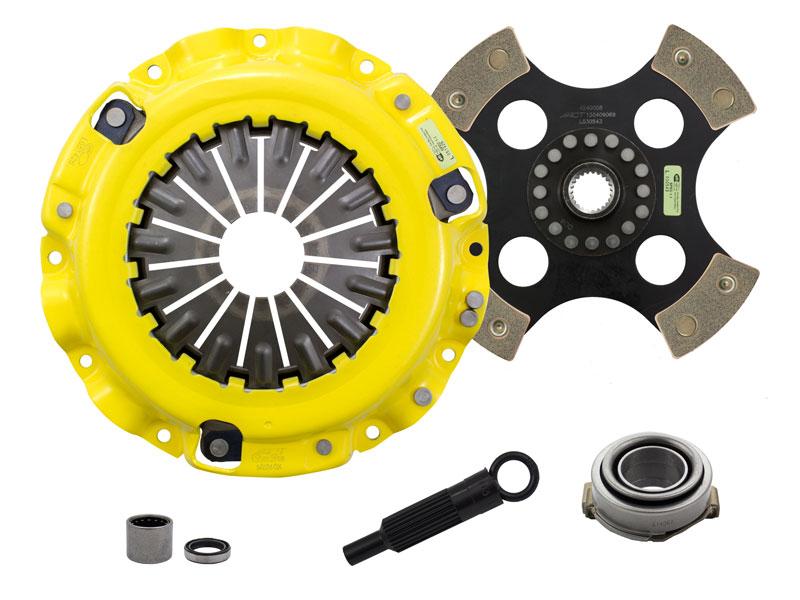

What's In The Box?

  • Clutch Friction Disc (4240008)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
