• ACT XT/Race Rigid 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Honda Civic (1988) (HC7-XTR4)

HC7-XTR4

Out of stock

$511.00 USD
$631.00 USD $511.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Honda Civic (1988) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design and a four-stage heat-treating process. The high-quality ceramic friction materials used in the 4-pad rigid race discs ensure durability and consistent engagement, making it suitable for aggressive street or race applications. Precision cover stampings contribute to the rigidity and stability of the assembly, providing reliable power transfer and improved pedal feel for serious enthusiasts.

This clutch kit is compatible with the 1988 Honda Civic HC7 model and is intended as a direct replacement for stock components. It is ideal for track use, high-performance street driving, or applications requiring maximum holding capacity. Installation involves replacing the existing clutch components with this bolt-on kit, which includes the pressure plate and race discs. Designed for drivers seeking increased performance and durability, this clutch assembly delivers reliable engagement and long-lasting performance under demanding conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

HC7-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic

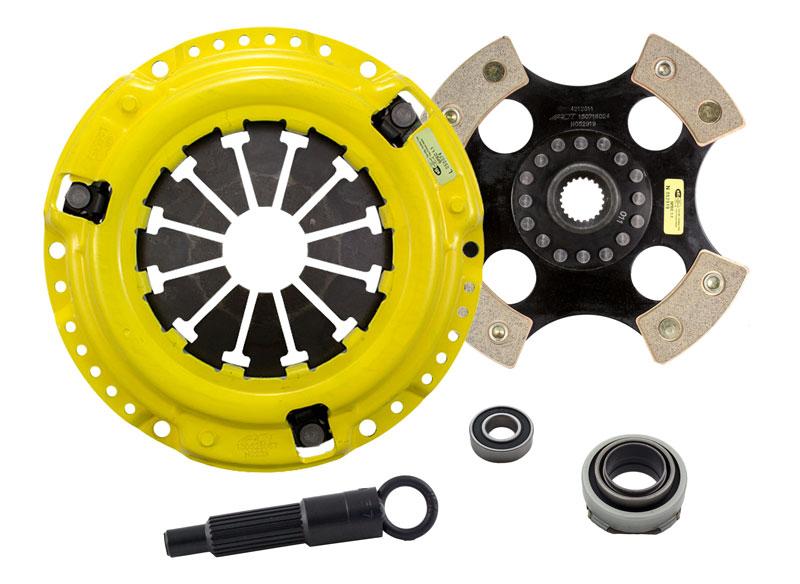

What's In The Box?

  • Clutch Friction Disc (4212011)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
