• ACT XT/Race Rigid 4 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTR4)

HW4-XTR4

In stock

$511.00 USD
$631.00 USD $511.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for Honda Civic (1989-1991) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load and reduces deflection, ensuring maximum power transfer and durability. The pressure plate employs an exclusive diaphragm design, which has undergone a four-stage heat-treating process to deliver superior performance and longevity. The high-quality ceramic friction materials used in the 4-pad rigid race discs provide excellent grip and heat resistance, making this clutch suitable for aggressive street and race applications. Precision cover stampings contribute to the overall rigidity and consistency of the assembly, ensuring reliable engagement and smooth operation under high-stress conditions.

This clutch kit is specifically engineered for 1989-1991 Honda Civic models, fitting various trims with compatible engine configurations. It serves as a direct replacement upgrade for stock clutch components, ideal for enthusiasts seeking improved performance and durability. Installation involves replacing the existing clutch with this bolt-on assembly, which includes all necessary components for a complete upgrade. The kit is suitable for street, track, and racing use, providing increased clamp force and heat resistance to handle higher horsepower and aggressive driving styles. Proper fitment and performance depend on correct installation and vehicle compatibility, making it a reliable choice for performance-oriented Honda Civic owners.

Overview

ACT XT/Race Rigid 4 Pad Kit

HW4-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Honda Civic

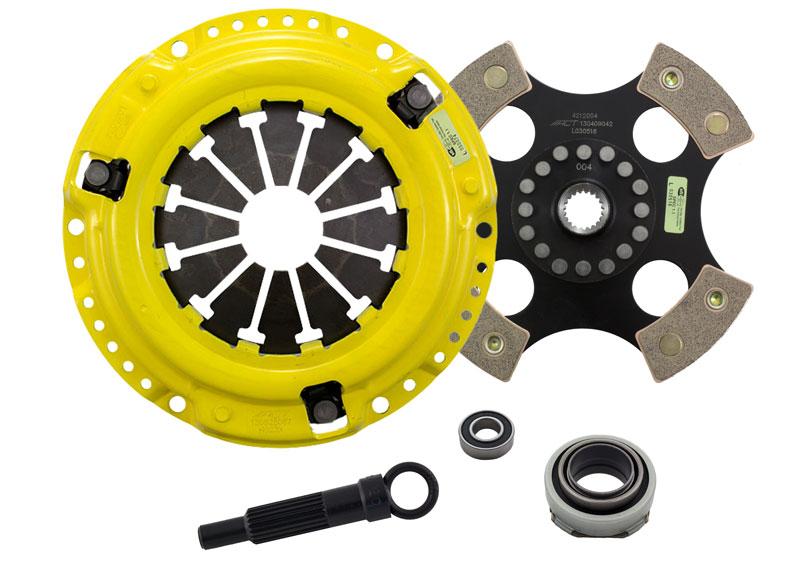

What's In The Box?

  • Clutch Friction Disc (4212004)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
