ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTR4)

NA1-XTR4

In stock

$518.00 USD
$640.00 USD $518.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Nissan Stanza (90-92) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load and reduces deflection, resulting in improved power transfer and clutch durability. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The kit includes four-pad rigid race discs constructed with high-quality ceramic friction materials, providing excellent grip and consistent engagement. Built for serious enthusiasts, this clutch kit delivers reliable, race-ready performance with increased heat resistance and durability.

This clutch kit is specifically designed for 1990-1992 Nissan Stanza models, compatible with various engine configurations within this chassis. It serves as a direct replacement for stock components, ideal for street and track use where high clamp loads and aggressive driving are required. Installation involves replacing the existing clutch with this bolt-on assembly, offering a straightforward upgrade for enhanced performance. The kit provides all necessary components for a complete clutch replacement, ensuring optimal fitment and operation. Suitable for drivers seeking increased holding capacity and durability, this ACT clutch kit is engineered to meet the demands of spirited driving and racing applications.

Overview

ACT XT/Race Rigid 4 Pad Kit

NA1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

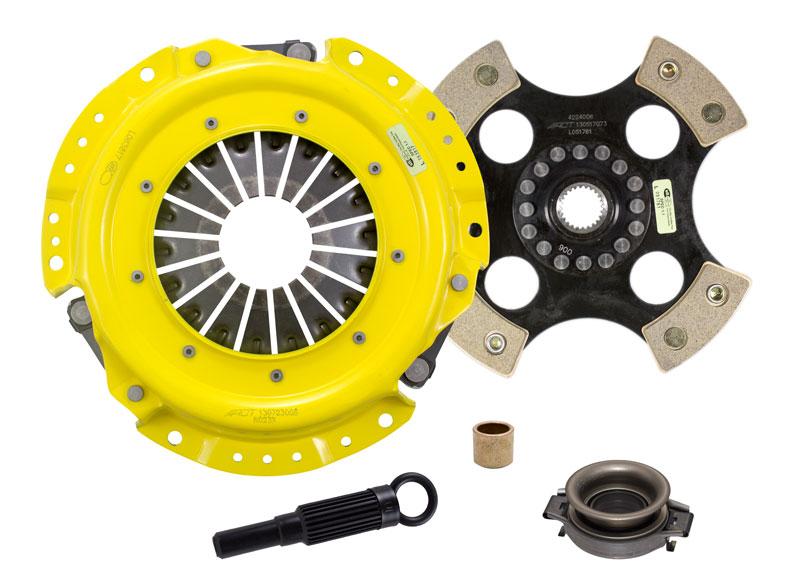

What's In The Box?

  • Clutch Friction Disc (4224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
