• ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (91-92) (TL3-XTR4)
1 1

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (91-92) (TL3-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (91-92) (TL3-XTR4)

TL3-XTR4

Out of stock

$644.00 USD
$644.00 USD $644.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Toyota Corolla XT/Race (91-92) is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes 4-pad rigid race discs made from high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for racing and aggressive driving, this clutch kit delivers maximum holding capacity and reliable engagement for competitive applications.

Designed specifically for 1991–1992 Toyota Corolla XT/Race models, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street, track, and racing use, offering enhanced performance and durability. Installation involves replacing the existing clutch with this bolt-on kit, which includes all necessary components for a straightforward upgrade. The ACT Extreme Race Rigid 4 Pad Clutch Kit is ideal for drivers seeking increased power transfer, improved pedal feel, and long-lasting performance in high-stress driving environments.

Overview

ACT XT/Race Rigid 4 Pad Kit

TL3-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1991-1992 Toyota Corolla

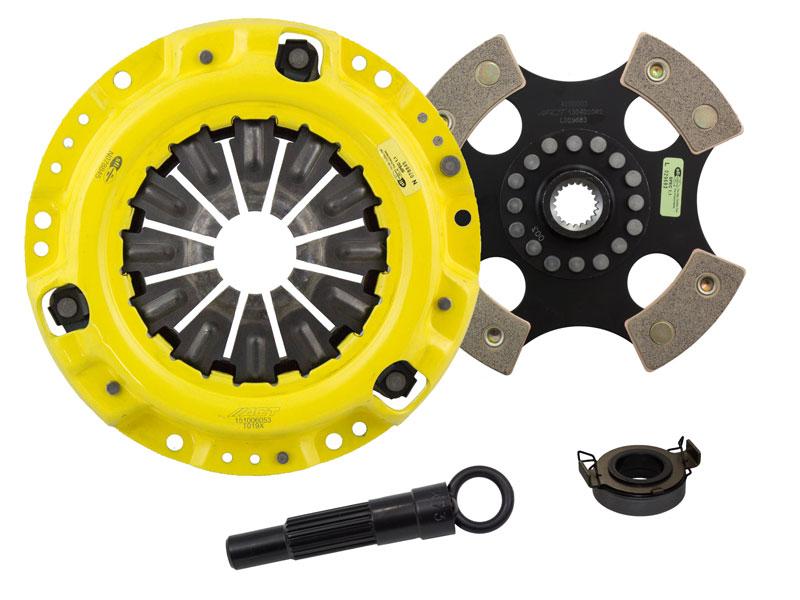

What's In The Box?

  • Clutch Friction Disc (4200003)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
