• ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-XTR4)

NX4-XTR4

In stock

$510.00 USD
$630.00 USD $510.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for Nissan 240SX (91-94) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability to withstand aggressive use. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 4-pad rigid race disc is constructed with high-quality ceramic friction materials, delivering superior grip and consistent engagement. This clutch kit is engineered for enthusiasts seeking reliable, race-ready performance with precise control and increased heat resistance.

Designed for 1991–1994 Nissan 240SX models, this clutch kit is suitable for street, track, and performance applications. It is a direct replacement for stock components, offering a bolt-on installation that maintains OEM fitment. The kit includes the pressure plate, disc, and necessary hardware for a complete upgrade. Compatible with vehicles equipped with manual transmissions, it is ideal for drivers demanding high clamp loads and durability in competitive or spirited driving scenarios. This ACT clutch kit ensures optimal power transfer and reliable operation under high-stress conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

NX4-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.1
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1991-1994 Nissan 240SX

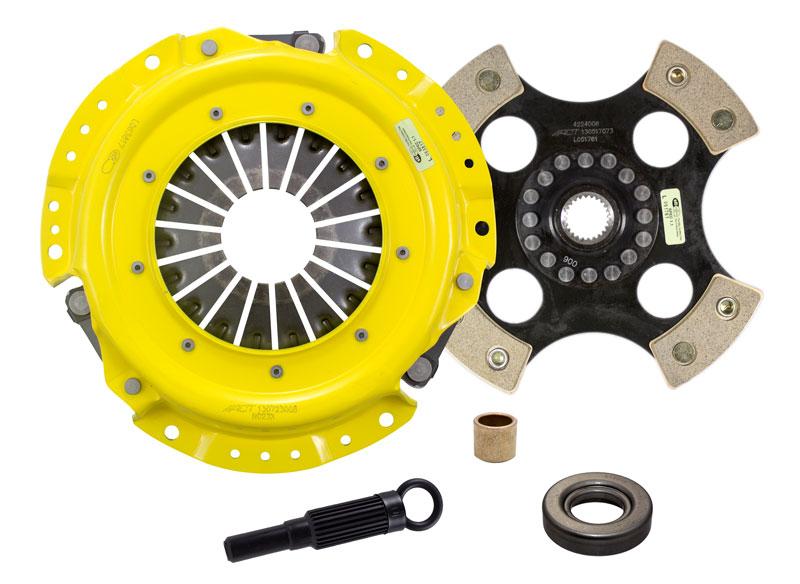

What's In The Box?

  • Clutch Friction Disc (4224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB810)

References

Warranty

  • Manufacturer 1 Year Warranty
