ACT Extreme Race Rigid 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Acura Integra (92-93) (AI3-XTR4)

AI3-XTR4

Out of stock

$572.00 USD
$706.00 USD $572.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Acura Integra (92-93) is a high-performance clutch system designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The kit includes ACT's 4-pad rigid race discs made with high-quality ceramic friction materials, providing excellent grip and heat resistance for aggressive driving and racing applications.

This clutch kit is specifically engineered for 1992-1993 Acura Integra models, compatible with various engine configurations within this chassis. It serves as a direct replacement for stock components, offering increased clamping force and improved durability for street and track use. Installation involves bolt-on replacement of existing clutch parts, making it suitable for performance enthusiasts seeking reliable, high-end performance upgrades. The kit provides all necessary components for a complete upgrade, ensuring optimal engagement and longevity under demanding conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

AI3-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.2
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1992-1993 Acura Integra

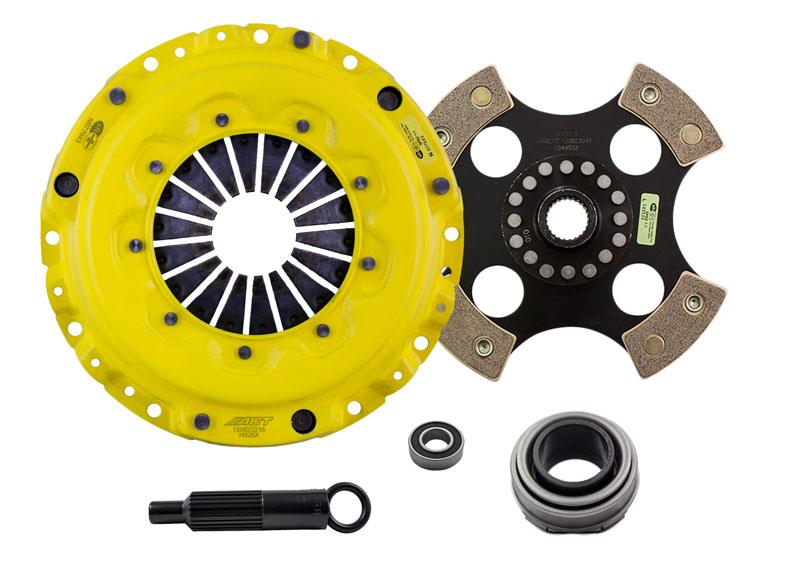

What's In The Box?

  • Clutch Friction Disc (4220010)
  • Clutch Alignment Tool (AT88)
  • Clutch Pressure Plate (H025X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB837)

References

Warranty

  • Manufacturer 1 Year Warranty
