• ACT Extreme Race Rigid 4 Pad Clutch Kit | Multiple Fitments (AR2-XTR4)
1 1

ACT Extreme Race Rigid 4 Pad Clutch Kit | Multiple Fitments (AR2-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Multiple Fitments (AR2-XTR4)

AR2-XTR4

In stock

$949.00 USD
$1,172.00 USD $949.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit is a high-performance clutch system designed for demanding driving conditions. Featuring ACT's Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances overall clutch durability. The four-stage heat-treating process applied to all diaphragms ensures exceptional performance and longevity. The high-quality ceramic friction materials used in the 4-pad rigid race discs provide excellent grip and heat resistance, making this kit suitable for aggressive street and track use. Built with precision cover stampings, the components deliver rigidity and consistency, optimizing power transfer and pedal feel for serious enthusiasts.

This clutch kit is compatible with a variety of vehicles, offering multiple fitment options to suit different applications. It is ideal for high-performance street driving, racing, or track days where maximum clamping force and durability are required. Designed as a direct replacement, it installs with standard procedures for a secure fit. The kit typically includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Suitable for vehicles that demand a robust clutch solution, this ACT Extreme Race Rigid 4 Pad Clutch Kit enhances performance and reliability under extreme conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

AR2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Must use ACT flywheel (included in kit).
  • Product Weight (lbs.): 24
  • Torque Capacity (ft/lbs.): 435
  • Torque Capacity Over OE: 1.09
  • Flywheel Included: Yes
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214

Applications

  • 2009-2014 Acura TSX
  • 2013-2015 Acura ILX
  • 2012-2015 Honda Civic
  • 2003-2012 Honda Accord

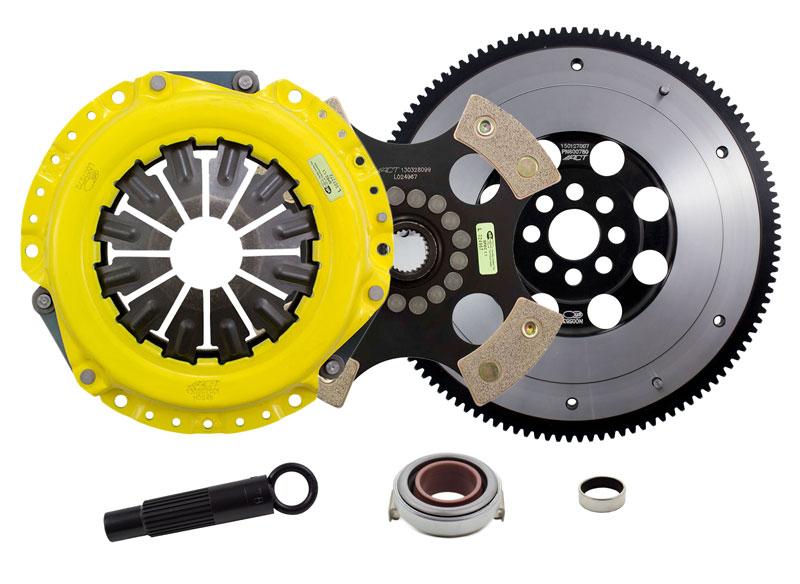

What's In The Box?

  • Clutch Friction Disc (4214010A)
  • Clutch Flywheel (600780)
  • Clutch Alignment Tool (AT78)
  • Clutch Pressure Plate (H024X)
  • Clutch Pilot Bushing (PBNA004)
  • Clutch Release Bearing (RB313)

References

Warranty

  • Manufacturer 1 Year Warranty
