• ACT XT/Race Rigid 4 Pad Clutch Kit | Multiple Fitments (HA3-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Multiple Fitments (HA3-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Multiple Fitments (HA3-XTR4)

HA3-XTR4

Out of stock

$525.00 USD
$648.00 USD $525.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch durability. The pressure plates undergo a four-stage heat-treating process to ensure maximum performance and longevity, while precision cover stampings provide added rigidity and consistency. The 4-pad rigid race discs incorporate high-quality ceramic friction materials, delivering reliable grip and consistent engagement under intense conditions. This kit is engineered to meet the needs of aggressive street and track enthusiasts seeking a durable, high-capacity clutch solution.

Designed for multiple fitments, the ACT XT/Race Rigid 4 Pad Clutch Kit (HA3-XTR4) is suitable for various vehicles requiring a robust clutch upgrade. It is ideal for high-performance applications, including racing and spirited driving, where maximum power transfer and durability are essential. The kit offers a direct bolt-on installation, making it compatible with existing clutch systems without extensive modifications. Suitable for use in vehicles with high horsepower or torque demands, this clutch kit ensures reliable operation during demanding driving scenarios. The package includes all necessary components for a complete upgrade, providing a professional-grade solution for performance-oriented drivers.

Overview

ACT XT/Race Rigid 4 Pad Kit

HA3-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 11.7
  • Torque Capacity (ft/lbs.): 490
  • Torque Capacity Over OE: 1.5
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1990-2002 Honda Accord
  • 1997-1999 Acura CL
  • 1992-2001 Honda Prelude

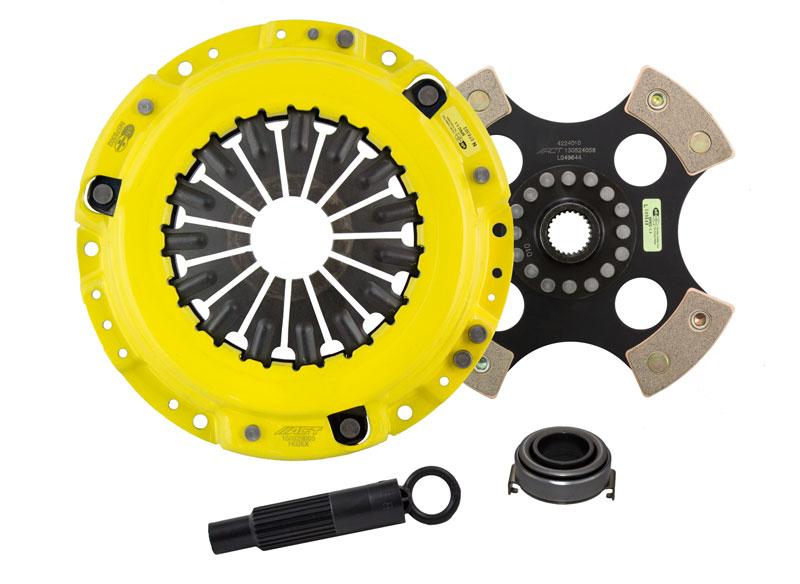

What's In The Box?

  • Clutch Friction Disc (4224010)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H026X)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
