ACT Extreme Race Rigid 4 Pad Clutch Kit | Honda Civic (90) (HC4-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Honda Civic (90) (HC4-XTR4)

HC4-XTR4

Out of stock

$505.00 USD
$624.00 USD $505.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for Honda Civic (90) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design. The pressure plates undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The kit includes high-quality ceramic friction materials on the 4-pad rigid race discs, providing excellent grip and heat resistance. Built for serious enthusiasts, this clutch kit delivers reliable power transfer and improved responsiveness for aggressive driving and racing applications.

Designed specifically for the 1990 Honda Civic, this clutch kit is a direct replacement upgrade for stock components. It is suitable for use in street, track, or racing environments where maximum clamping force and durability are required. Installation involves replacing the existing clutch with this bolt-on kit, which includes all necessary components for a complete upgrade. Compatibility is optimized for Honda Civics with similar specifications, ensuring a precise fit and reliable operation. This clutch kit is ideal for drivers seeking enhanced performance and longevity in high-stress driving scenarios.

Overview

ACT XT/Race Rigid 4 Pad Kit

HC4-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 9.8

Applications

  • 1989-1991 Honda Civic
  • 1989-1991 Honda CRX

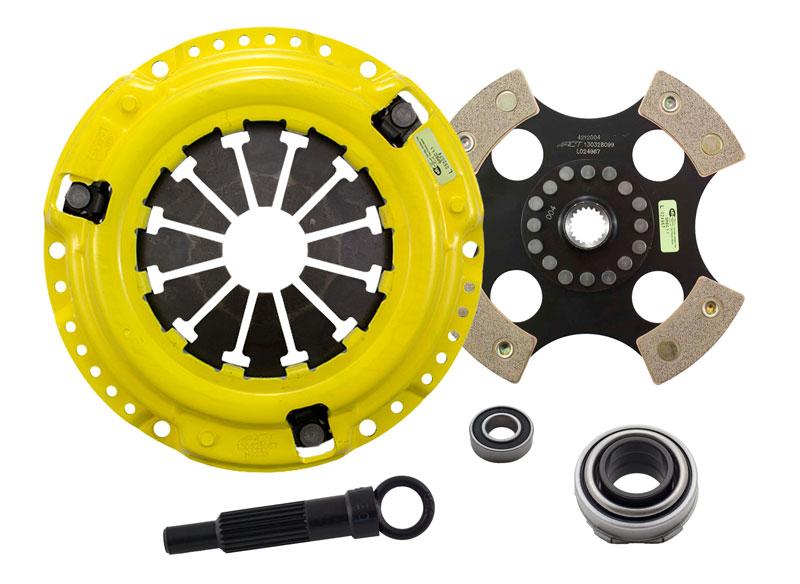

What's In The Box?

  • Clutch Friction Disc (4212004)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
