ACT Extreme Race Rigid 4 Pad Clutch Kit | Honda Civic (88) (HC6-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Honda Civic (88) (HC6-XTR4)

HC6-XTR4

Out of stock

$505.00 USD
$624.00 USD $505.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for Honda Civic (88) is a high-performance clutch upgrade designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The 4-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent heat resistance and friction characteristics for aggressive driving. This combination delivers maximum holding capacity and responsiveness, making it ideal for racing or high-performance street applications.

Designed specifically for the 1988 Honda Civic, this clutch kit is a direct replacement for stock components, offering a significant upgrade in clamping force and durability. It is suitable for use in street, track, or competition environments where high torque capacity and reliability are essential. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with models equipped with compatible engine configurations, this clutch kit provides a robust solution for drivers seeking enhanced performance and longevity in their clutch system.

Overview

ACT XT/Race Rigid 4 Pad Kit

HC6-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 9.8
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes

Applications

  • 1988-1988 Honda Civic
  • 1988-1988 Honda CRX

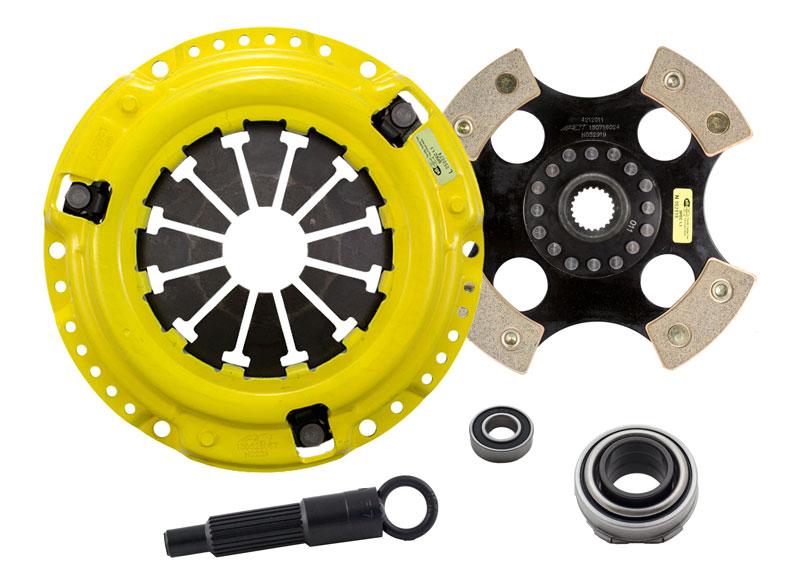

What's In The Box?

  • Clutch Friction Disc (4212011)
  • Clutch Alignment Tool (AT57)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB427)

References

Warranty

  • Manufacturer 1 Year Warranty
