The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Chrysler Conquest 1987 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The kit includes 4-pad rigid race discs made from high-quality ceramic friction materials, providing excellent grip and heat resistance. Engineered for maximum performance, this clutch kit delivers reliable engagement and enhanced power transfer for aggressive driving and racing applications.

This clutch kit is specifically designed for 1987 Chrysler Conquest models, fitting the MS1-XTR4 SKU. It is intended for use in high-stress environments such as racing or spirited street driving, where durability and performance are critical. The assembly is a bolt-on upgrade that replaces the stock clutch components, offering a direct fit for the specified vehicle. Installation requires standard mechanical procedures, and the kit includes all necessary components for a complete upgrade. Suitable for drivers seeking increased clamping force and longevity, this clutch kit enhances overall drivetrain performance for competitive and enthusiast applications.

Overview

ACT XT/Race Rigid 4 Pad Kit

MS1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.7
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1989 Chrysler Conquest
  • 1987-1989 Mitsubishi Starion

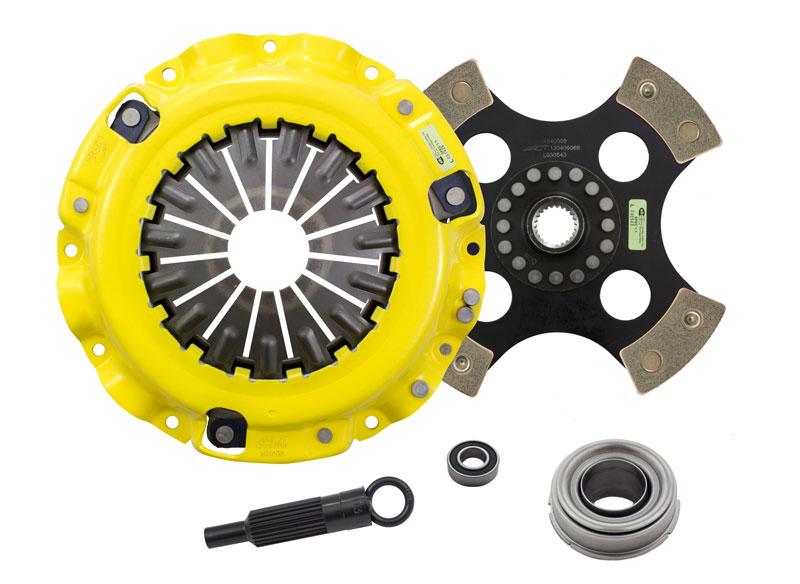

What's In The Box?

  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB422)
  • Clutch Friction Disc (4240008)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)

References

Warranty

  • Manufacturer 1 Year Warranty
