ACT Extreme Race Rigid 4 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Infiniti I30 (96) (NM1-XTR4)

NM1-XTR4

In stock

$533.00 USD
$658.00 USD $533.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Infiniti I30 (96) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and enhanced durability. The pressure plate utilizes an exclusive diaphragm design, which has undergone a four-stage heat-treating process to ensure unparalleled performance and longevity. The high-quality ceramic friction materials used in the 4-pad rigid race discs provide excellent grip and consistent engagement, making this clutch kit suitable for aggressive street and race applications. Its construction emphasizes rigidity and precision, offering a reliable upgrade for drivers seeking increased power handling and durability.

This clutch kit is compatible with the 1996 Infiniti I30 and serves as a direct replacement for stock components. It is ideal for high-performance street driving, track use, or racing scenarios where maximum clamping force and heat resistance are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed for vehicles with high horsepower or torque demands, this clutch assembly enhances overall performance and reliability. Proper installation ensures optimal engagement and longevity, making it a preferred choice for enthusiasts and racers seeking a durable, high-capacity clutch solution.

Overview

ACT XT/Race Rigid 4 Pad Kit

NM1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 14.4
  • Torque Capacity (ft/lbs.): 565
  • Torque Capacity Over OE: 1.27
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1985-2001 Nissan Maxima
  • 1996-1999 Infiniti I30

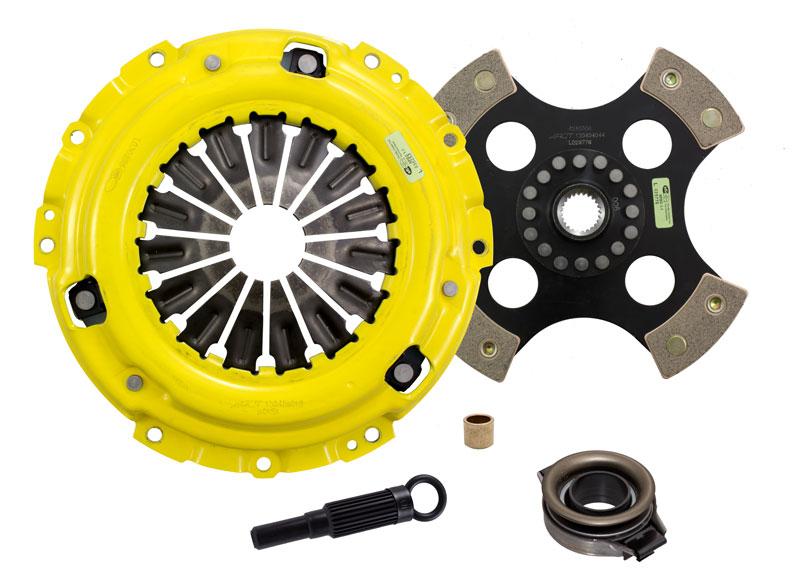

What's In The Box?

  • Clutch Friction Disc (4240006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N015X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB809)

References

Warranty

  • Manufacturer 1 Year Warranty
