ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 240SX (1989) (NX1-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 240SX (1989) (NX1-XTR4)

NX1-XTR4

In stock

$484.00 USD
$597.00 USD $484.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Nissan 240SX (1989) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load and reduces deflection, resulting in improved power transfer and durability. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This combination delivers a reliable, aggressive engagement suitable for racing or spirited driving, while maintaining consistent performance under extreme conditions.

This clutch kit is specifically engineered for the 1989 Nissan 240SX with NX1-XTR4 fitment, making it a direct replacement for stock components. It is ideal for track use, high-performance street driving, or any application requiring increased clamping force and durability. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed to withstand the rigors of aggressive driving, this clutch assembly enhances vehicle responsiveness and power delivery, making it suitable for enthusiasts seeking maximum performance from their Nissan 240SX.

Overview

ACT XT/Race Rigid 4 Pad Kit

NX1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1975-1978 Nissan 280Z
  • 1975-1979 Nissan 620
  • 1980-1983 Nissan 720
  • 1979-1983 Nissan 280ZX
  • 1981-1984 Nissan Maxima
  • 1990-1990 Nissan Axxess
  • 1980-1986 Nissan 720
  • 1989-1998 Nissan 240SX

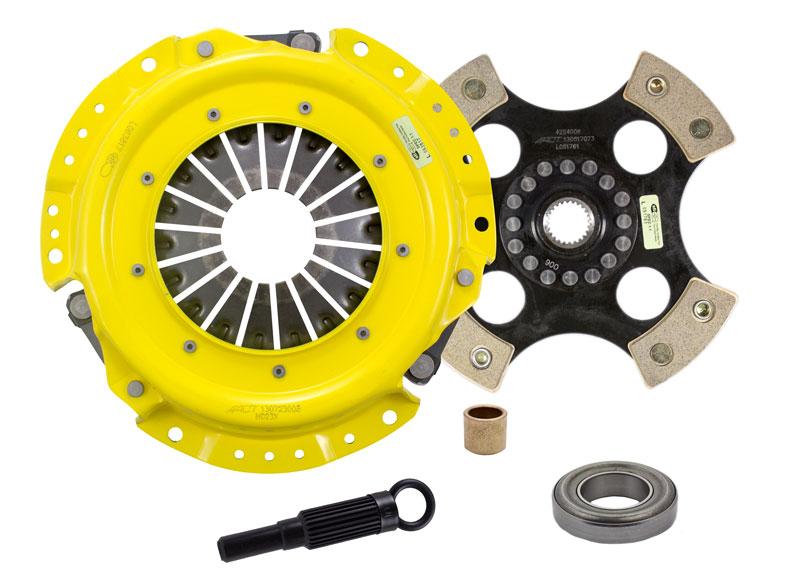

What's In The Box?

  • Clutch Friction Disc (4224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
