• ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Nissan 280ZX (81) (NX2-XTR4)

NX2-XTR4

Out of stock

$677.00 USD
$677.00 USD $677.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Nissan 280ZX (81) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that employs an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Overall, this clutch kit is engineered to deliver maximum power transfer, enhanced durability, and reliable operation for serious drivers.

Suitable for 1981 Nissan 280ZX models, this clutch kit is intended for high-performance applications, including racing and spirited street driving. It offers a direct bolt-on replacement for stock components, ensuring straightforward installation. The kit includes the necessary pressure plate and disc components, designed to withstand aggressive driving and high torque loads. Compatible with vehicles equipped with the original or similar clutch setup, it is ideal for enthusiasts seeking improved clutch engagement and longevity. This assembly is perfect for track days, street performance, or any scenario demanding superior clutch performance.

Overview

ACT XT/Race Rigid 4 Pad Kit

NX2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 17.2
  • Torque Capacity (ft/lbs.): 630
  • Torque Capacity Over OE: 1.23
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1987 Nissan Pathfinder
  • 1979-1983 Nissan 280ZX
  • 1987-1988 Nissan 200SX
  • 1984-1989 Nissan 300ZX
  • 1995-1998 Nissan Pickup
  • 1986-1994 Nissan D21

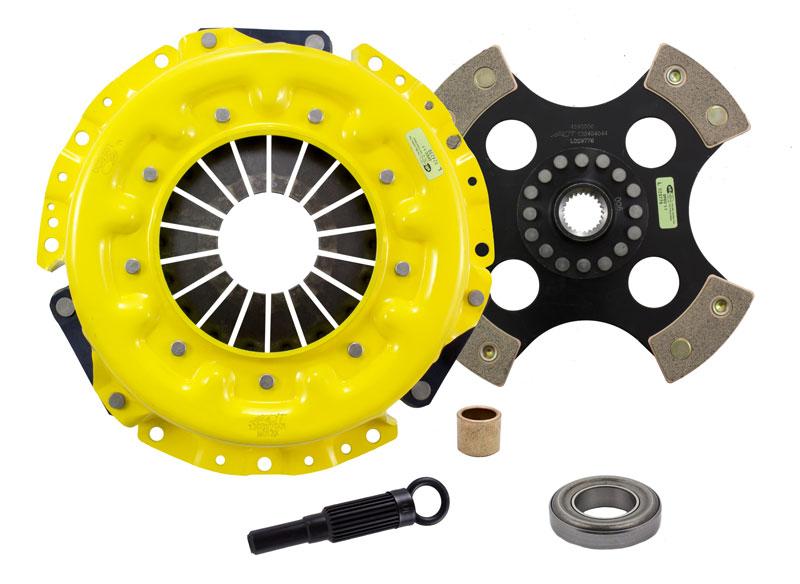

What's In The Box?

  • Clutch Friction Disc (4240006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N013X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB016)

References

Warranty

  • Manufacturer 1 Year Warranty
