ACT Extreme Race Rigid 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Nissan 200SX (96) (NX9-XTR4)

NX9-XTR4

Out of stock

$509.00 USD
$628.00 USD $509.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances overall clutch durability. The pressure plate undergoes a four-stage heat-treating process to ensure maximum performance and longevity, while precision cover stampings provide added rigidity and consistency. The kit includes 4-pad rigid race discs constructed with high-quality ceramic friction materials, delivering superior grip and heat resistance for aggressive driving and racing applications.

This clutch kit is specifically engineered for the Nissan 200SX (96) with the NX9 chassis code. It is a direct replacement upgrade suitable for street, track, or competition use, offering increased holding capacity and reliable engagement under high stress. Installation is designed to be straightforward for experienced technicians, with all necessary components included. Ideal for drivers seeking enhanced performance and durability, this ACT clutch kit ensures optimal power transfer and consistent operation during intense driving conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

NX9-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.36
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.4
  • Clutch Disc Diameter (mm): 214
  • Disc Material: Ceramic
  • Input Spline Quantity: 18
  • Input Shaft Diameter (in.): 0.8125
  • Alignment Tool Included: Yes

Applications

  • 1995-1998 Nissan 200SX
  • 1991-1993 Nissan NX
  • 1991-2002 Infiniti G20
  • 1991-2006 Nissan Sentra

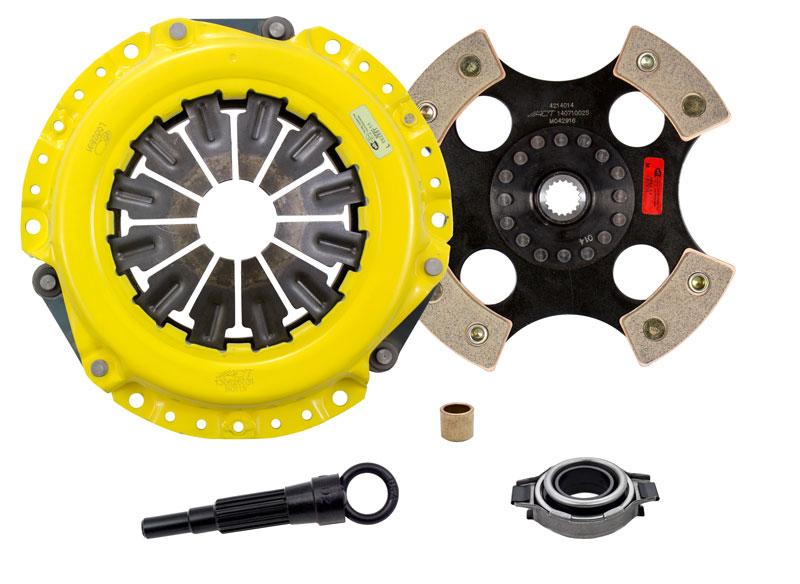

What's In The Box?

  • Clutch Friction Disc (4214014)
  • Clutch Alignment Tool (AT68)
  • Clutch Pressure Plate (N011X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB433)

References

Warranty

  • Manufacturer 1 Year Warranty
