ACT Extreme Off-Road Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (1987) (T43-XTR4)

ACT Extreme Off-Road Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (1987) (T43-XTR4)

T43-XTR4

Out of stock

$581.00 USD
$717.00 USD $581.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Off-Road Race Rigid 4 Pad Clutch Kit for the Toyota 4Runner (1987) is a high-performance clutch assembly designed for demanding off-road racing applications. This kit features ACT's Heavy Duty pressure plate combined with a rigid 4 pad race disc, providing ultra-high torque capacity and aggressive engagement characteristics. The design emphasizes increased toughness and durability to withstand extreme conditions, making it ideal for off-road enthusiasts and racing environments. The pressure plate incorporates ACT’s exclusive diaphragm design, which significantly boosts clamp load, minimizes deflection, and enhances overall clutch life. All diaphragms undergo a rigorous four-stage heat-treating process to ensure consistent, reliable performance under intense stress.

This clutch kit is specifically engineered for the 1987 Toyota 4Runner, offering a direct replacement for stock components. It is suitable for vehicles subjected to high-torque loads, such as off-road racing or heavy-duty use, and is intended for installation in models with compatible drivetrain configurations. The kit provides a bolt-on upgrade that improves engagement and durability without requiring extensive modifications. It is designed for use in off-road, racing, or high-performance street applications where maximum torque transfer and clutch longevity are critical. The package includes all necessary components for installation, ensuring a straightforward upgrade process.

Overview

ACT XT/Race Rigid 4 Pad Kit

T43-XTR4 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 4 pad race disc delivering ultra-high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 4 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.

Features

  • Product Weight (lbs.): 15.4
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1987-1995 Toyota 4Runner
  • 1987-1995 Toyota Pickup

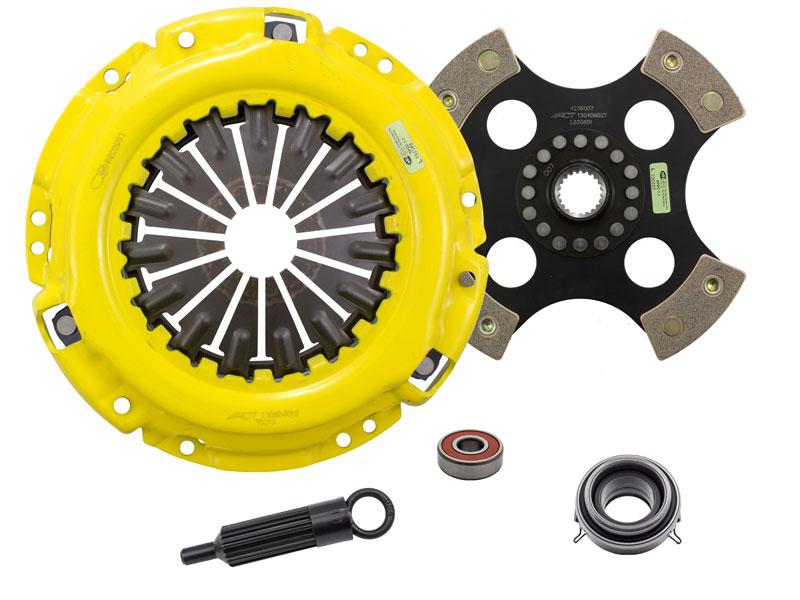

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB445)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
