• ACT Extreme Race Rigid 4 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTR4)
1 1

ACT Extreme Race Rigid 4 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC1-XTR4)

TC1-XTR4

In stock

$546.00 USD
$674.00 USD $546.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the 1991 Geo Prizm XT is a high-performance clutch system designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for racing and aggressive driving, this clutch kit delivers maximum power transfer, improved responsiveness, and enhanced durability for competitive or spirited street applications.

Designed specifically for the 1991 Geo Prizm XT, this clutch kit is a direct replacement for stock components, offering a reliable upgrade for performance enthusiasts. It is suitable for use in racing, track days, or high-performance street driving, where maximum clamping force and durability are essential. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with vehicles equipped with compatible engine configurations, this clutch system is engineered to withstand high torque loads and aggressive shifting, making it ideal for drivers seeking increased performance and longevity in demanding conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

TC1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.2
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 1.22
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1989-1991 Toyota Corolla
  • 1990-1991 Geo Prizm
  • 1990-1991 Toyota Celica
  • 1985-1989 Toyota MR2

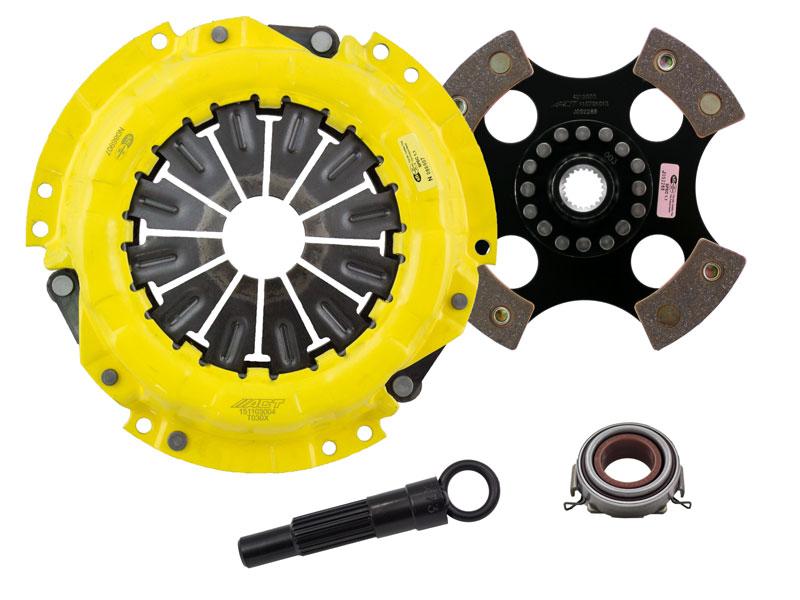

What's In The Box?

  • Clutch Friction Disc (4212003)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T030X)

References

Warranty

  • Manufacturer 1 Year Warranty
