| Year | Make | Model |
|---|---|---|
| 2005 - 2006 | Scion | tC Base |
| 2005 - 2006 | Toyota | Camry Base |
| 1988 - 1991 | Toyota | Camry DLX |
| 1988 - 1991 | Toyota | Camry LE |
| 2002 - 2006 | Toyota | Camry LE |
| 2002 - 2006 | Toyota | Camry SE |
| 2002 - 2006 | Toyota | Camry XLE |
| 2002 - 2006 | Toyota | Solara SE |
| 2006 | Toyota | Solara SE Sport |
| 2004 - 2006 | Toyota | Solara SLE |
ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Camry (1988) (TC6-XTR4)
ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Camry (1988) (TC6-XTR4)
SKU:TC6-XTR4
Out of stock
Couldn't load pickup availability
▶ Vehicle Fitments
The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Toyota Camry (1988) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The high-quality ceramic friction materials used in the 4-pad rigid race discs provide excellent grip and heat resistance, making this clutch suitable for aggressive driving and racing applications. Its construction emphasizes rigidity and precision, delivering reliable power transfer and enhanced durability for motorsport or high-performance street use.
This clutch kit is specifically designed for the 1988 Toyota Camry, compatible with models equipped with the appropriate engine and transmission setup. It serves as a direct replacement and performance upgrade for stock clutch components, ideal for track days, spirited driving, or heavy-duty applications. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Suitable for use in street and race environments, this clutch assembly provides increased clamping force and improved heat dissipation, supporting high horsepower and torque levels while maintaining smooth engagement and long service life.
Share
Overview
Overview
ACT XT/Race Rigid 4 Pad Kit
TC6-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Features
- Product Weight (lbs.): 13.3
- Torque Capacity (ft/lbs.): 500
- Torque Capacity Over OE: 1.06
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 9.3
- Clutch Disc Diameter (mm): 236
- Disc Material: Ceramic
- Input Spline Quantity: 21
- Input Shaft Diameter (in.): 1.125
- Alignment Tool Included: Yes
Applications
- 2005-2006 Scion tC
- 1988-2006 Toyota Camry
- 2002-2006 Toyota Solara

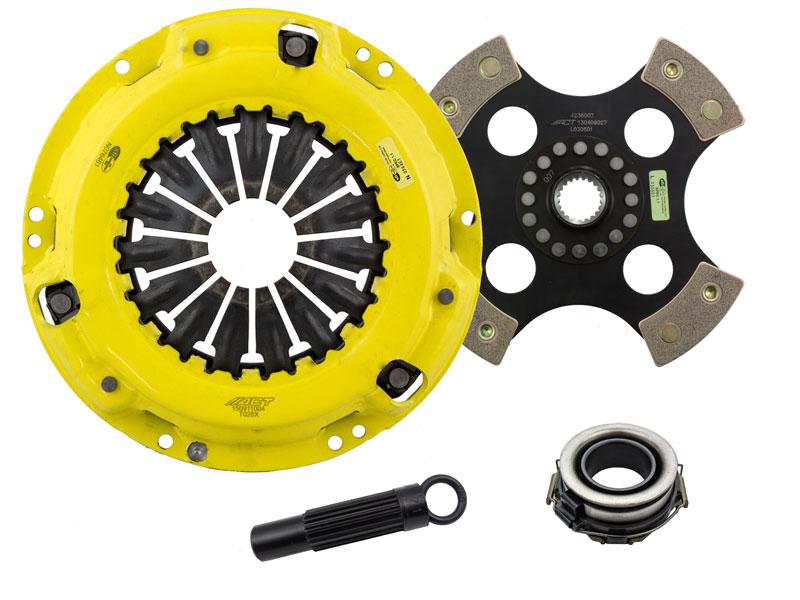

What's In The Box?
- Clutch Friction Disc (4236007)
- Clutch Alignment Tool (AT71)
- Clutch Release Bearing (RB219)
- Clutch Pressure Plate (T028X)
References
Warranty
- Manufacturer 1 Year Warranty
