• ACT Extreme Race Rigid 4 Pad Clutch Kit | Scion tC (06) (TC7-XTR4)
1 1

ACT Extreme Race Rigid 4 Pad Clutch Kit | Scion tC (06) (TC7-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Scion tC (06) (TC7-XTR4)

TC7-XTR4

Out of stock

$705.00 USD
$705.00 USD $705.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Scion tC (06) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plates undergo a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The 4-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This combination delivers superior torque capacity and responsiveness, making it ideal for track use or aggressive street driving.

Designed specifically for the 2006 Scion tC, this clutch kit is a direct replacement upgrade for stock components. It is suitable for drivers seeking enhanced performance and durability in high-stress applications. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Compatible with models equipped with the stock engine configuration, this clutch kit is optimized for both street and track use, offering reliable engagement and long-lasting performance under demanding conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

TC7-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 500
  • Torque Capacity Over OE: 1.06
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 2006-2010 Scion tC
  • 2009-2013 Toyota Matrix
  • 2007-2008 Toyota Camry
  • 2009-2012 Toyota Corolla
  • 2008-2015 Scion xB

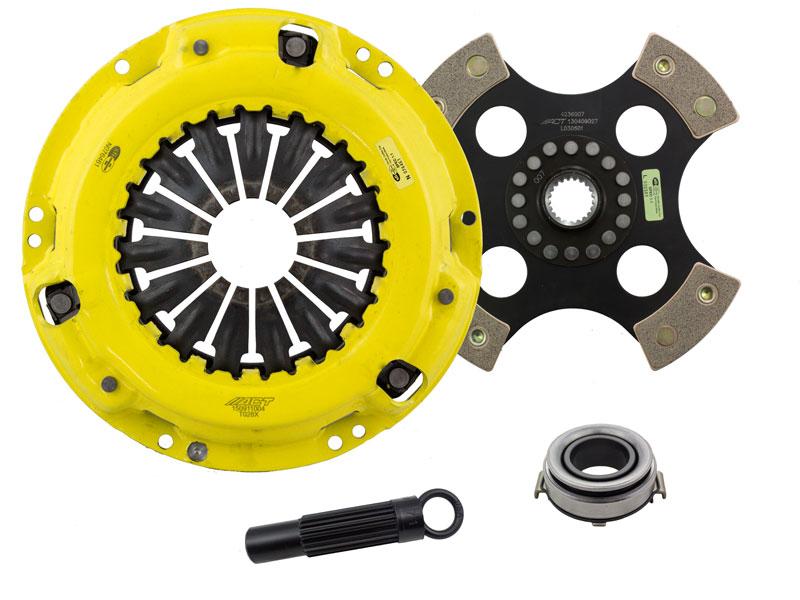

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028X)

References

Warranty

  • Manufacturer 1 Year Warranty
