ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (1986) (TL2-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Corolla XT/Race (1986) (TL2-XTR4)

TL2-XTR4

Out of stock

$631.00 USD
$631.00 USD $631.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Toyota Corolla XT/Race (1986) is a high-performance clutch system designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life, making it suitable for aggressive street or race applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes high-quality, ceramic friction material discs with a rigid four-pad design, providing reliable engagement and excellent heat resistance. Built with precision cover stampings, the components deliver rigidity and stability under extreme loads, making this clutch kit ideal for drivers seeking maximum performance and longevity.

Designed for use with the 1986 Toyota Corolla XT/Race, this clutch kit is a direct replacement upgrade for stock components. It is engineered to handle high torque and aggressive driving styles, whether on the street or track. The kit is a bolt-on installation, compatible with the vehicle’s original flywheel and clutch assembly. Suitable for performance-oriented applications, it ensures improved power transfer and clutch engagement. The package includes all necessary components for installation, providing a comprehensive upgrade for enthusiasts looking to enhance their vehicle’s clutch performance and durability in demanding conditions.

Overview

ACT XT/Race Rigid 4 Pad Kit

TL2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 10.1
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1985-1985 Toyota MR2
  • 1991-1998 Toyota Tercel
  • 1986-1991 Toyota Corolla
  • 1992-1998 Toyota Paseo
  • 1989-1991 Geo Prizm
  • 1985-1988 Chevrolet Nova

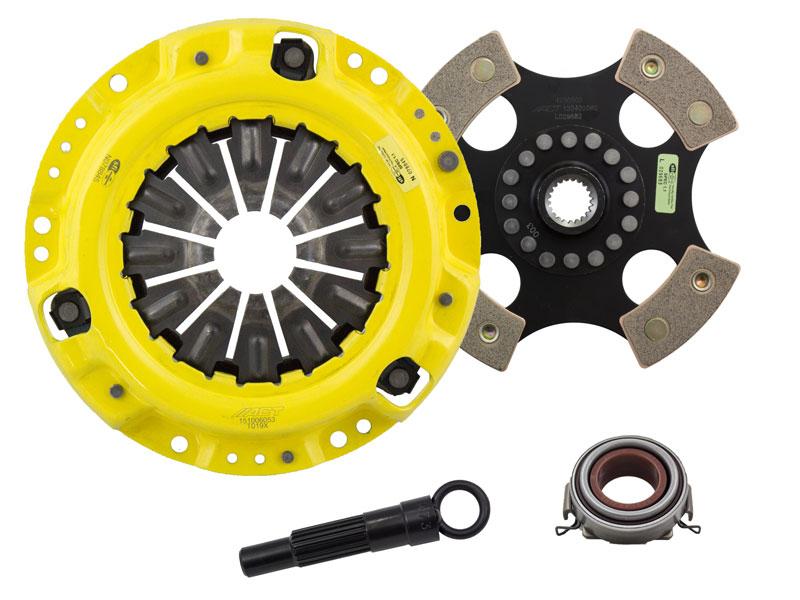

What's In The Box?

  • Clutch Release Bearing (RB371)
  • Clutch Pressure Plate (T019X)
  • Clutch Friction Disc (4200003)
  • Clutch Alignment Tool (ATK73)

References

Warranty

  • Manufacturer 1 Year Warranty
