ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota 4Runner (1987) (TS1-XTR4)

TS1-XTR4

Out of stock

$567.00 USD
$700.00 USD $567.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the Toyota 4Runner (1987) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life. The pressure plate employs an exclusive diaphragm design, undergoes a four-stage heat-treating process for durability, and includes precision cover stampings to ensure rigidity and consistency. The 4-pad rigid race disc utilizes high-quality ceramic friction materials, providing superior grip and heat resistance. This combination delivers exceptional performance for aggressive driving, racing, or heavy-duty applications, ensuring reliable power transfer and longevity.

Designed specifically for the 1987 Toyota 4Runner, this clutch kit is a direct replacement for stock components and is suitable for street and track use. It is engineered to handle increased torque and high-stress conditions, making it ideal for performance enthusiasts and racers. Installation involves replacing the existing clutch with this bolt-on kit, which includes all necessary components for a complete upgrade. Compatible with the original equipment specifications, this clutch kit offers a robust solution for enhancing vehicle performance and durability in demanding driving environments.

Overview

ACT XT/Race Rigid 4 Pad Kit

TS1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 15.1
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.07
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1986-1988 Toyota Supra
  • 1984-1987 Toyota Cressida
  • 1985-1987 Toyota 4Runner
  • 1985-1987 Toyota Pickup
  • 1982-1985 Toyota Celica

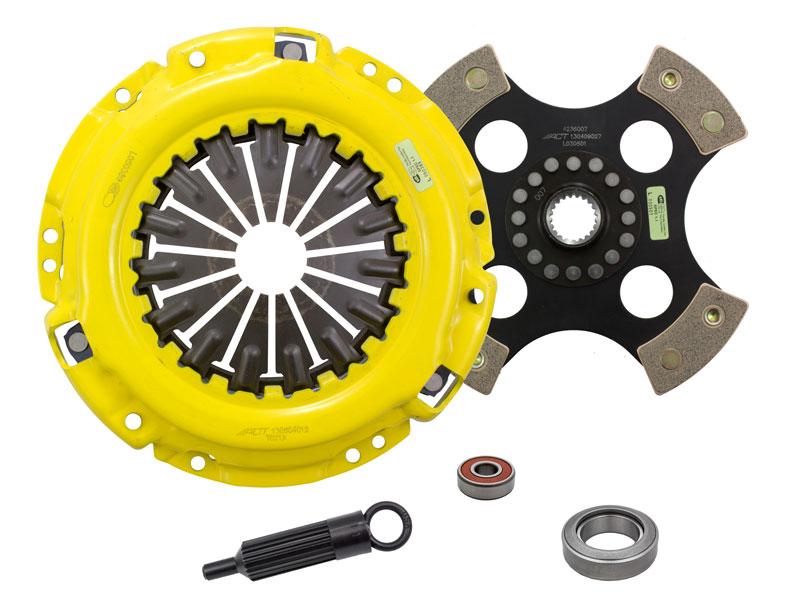

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT11)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T021X)

References

Warranty

  • Manufacturer 1 Year Warranty
View full details
