• ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTR4)
1 1

ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTR4)

ACT XT/Race Rigid 4 Pad Clutch Kit | Toyota Camry (1988) (TY3-XTR4)

TY3-XTR4

Out of stock

$613.00 USD
$757.00 USD $613.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 4 Pad Clutch Kit for the 1988 Toyota Camry is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, with precision cover stampings that enhance rigidity. The kit includes a 4-pad rigid race disc made from high-quality ceramic friction materials, providing excellent grip and heat resistance. This setup is ideal for racing or aggressive street driving, offering increased clamping force and reliable engagement for high-stress applications.

Designed specifically for the 1988 Toyota Camry, this clutch kit is a direct replacement upgrade for stock components. It is suitable for vehicles with stock or mildly modified engines used in racing, track days, or spirited driving. The installation is a bolt-on process, compatible with the original transmission and clutch linkage. The kit includes the pressure plate and clutch disc, ensuring a complete upgrade for enhanced performance. This clutch assembly is engineered to withstand high torque loads and high RPM operation, making it an excellent choice for drivers seeking maximum performance and durability in their daily or track-driven vehicle.

Overview

ACT XT/Race Rigid 4 Pad Kit

TY3-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1988-1991 Toyota Camry
  • 1988-1989 Toyota Celica
  • 1996-2000 Toyota RAV4
  • 1990-1991 Lexus ES250

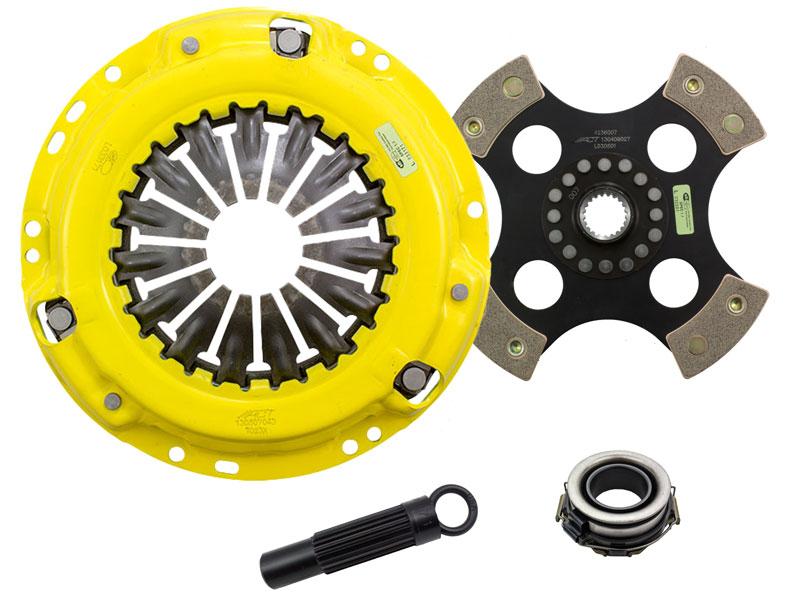

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB219)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
