ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Camry 2002 (TY4-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Toyota Camry 2002 (TY4-XTR4)

TY4-XTR4

Out of stock

$613.00 USD
$757.00 USD $613.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Toyota Camry 2002 is a high-performance clutch assembly designed for demanding driving conditions. It features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under intense use. The kit includes a 4-pad rigid race disc made from high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for maximum performance, this clutch kit delivers increased torque capacity and reliable engagement, making it suitable for racing or aggressive street driving.

Designed specifically for the 2002 Toyota Camry equipped with the 4-cylinder engine, this clutch kit is a direct replacement upgrade for stock components. It is ideal for drivers seeking enhanced performance, durability, and responsiveness during spirited driving or track use. The assembly is a bolt-on installation, requiring no modifications for proper fitment. The kit includes the pressure plate, disc, and necessary hardware, ensuring a complete upgrade. Suitable for street, track, or performance applications, this clutch kit provides a robust solution for drivers demanding high clamp loads and long-lasting performance.

Overview

ACT XT/Race Rigid 4 Pad Kit

TY4-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.9
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1999-2002 Toyota Solara
  • 1992-1993 Lexus ES300
  • 1992-2002 Toyota Camry

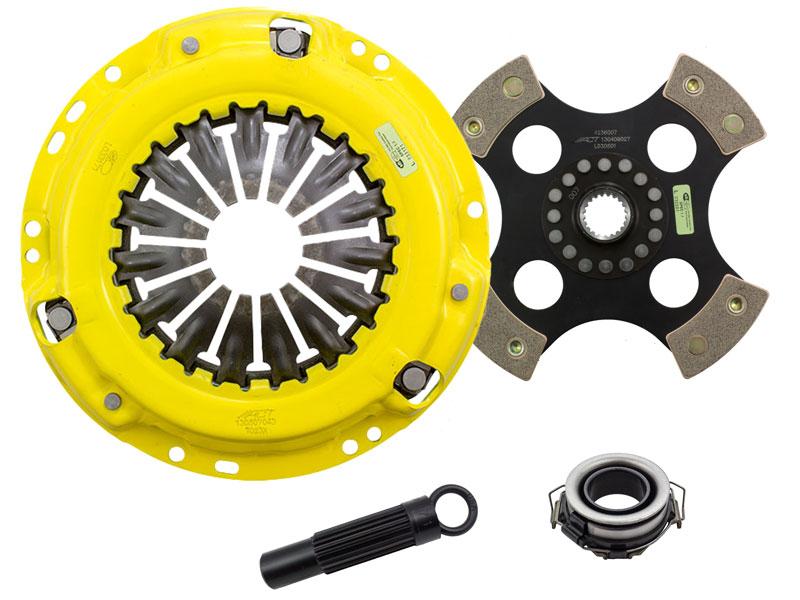

What's In The Box?

  • Clutch Friction Disc (4236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
