ACT Extreme Race Rigid 4 Pad Clutch Kit | Kia Sportage (95) (Z61-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Kia Sportage (95) (Z61-XTR4)

Z61-XTR4

Out of stock

$748.00 USD
$748.00 USD $748.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Kia Sportage (95) features a high-performance clutch system designed for demanding driving conditions. The kit includes an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. All diaphragms undergo a four-stage heat-treating process, ensuring durability and consistent performance under extreme conditions. The 4-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This setup is engineered to deliver maximum power transfer, enhanced durability, and reliable operation during aggressive driving or racing applications.

Designed specifically for the Kia Sportage (95) with chassis code Z61, this clutch kit is suitable for high-performance street and track use. It serves as a direct replacement for stock components, offering increased clamping force and improved heat dissipation. Installation involves bolt-on assembly, making it compatible with existing clutch systems without modifications. The kit includes all necessary components for a complete upgrade, ensuring optimal engagement and longevity. Ideal for drivers seeking a robust, race-ready clutch solution, this ACT kit enhances vehicle responsiveness and overall driving performance.

Overview

ACT XT/Race Rigid 4 Pad Kit

Z61-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 11.5
  • Torque Capacity (ft/lbs.): 470
  • Torque Capacity Over OE: 1.56
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1995-2002 Kia Sportage
  • 1988-1992 Mazda MX-6
  • 1988-1989 Mazda 323
  • 1988-1992 Mazda 626
  • 1989-1992 Ford Probe

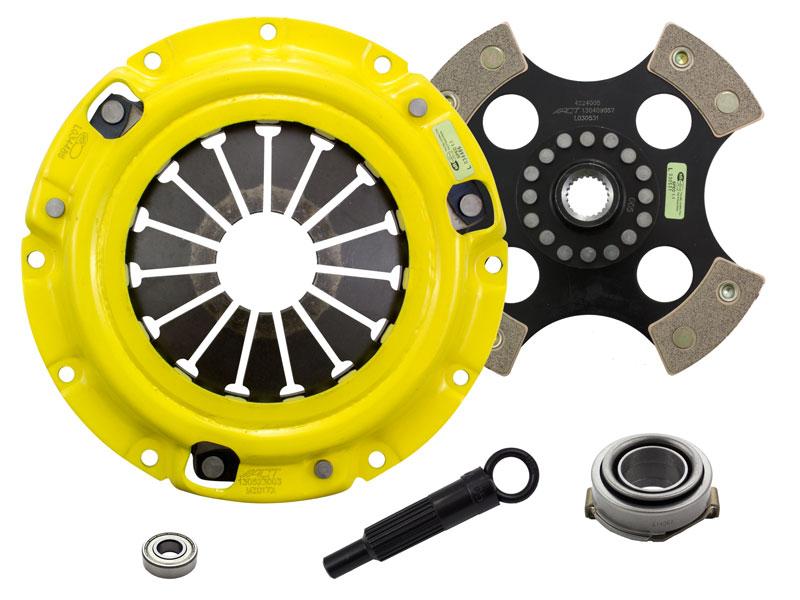

What's In The Box?

  • Clutch Friction Disc (4224005)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ017X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
