ACT XT/Race Rigid 4 Pad Kit | Multiple Fitments (Z64-XTR4)

ACT XT/Race Rigid 4 Pad Kit

Z64-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.4
• Clutch Disc Diameter (mm): 240
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter (in.): 1
• Alignment Tool Included: Yes
• Product Weight (lbs.): 14.7
• Torque Capacity (ft/lbs.): 560
• Torque Capacity Over OE: 1.3
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme

Applications

• 1988-1991 Mazda 626
• 1988-1992 Mazda MX-6
• 1988-1991 Mazda 929
• 1989-1992 Ford Probe

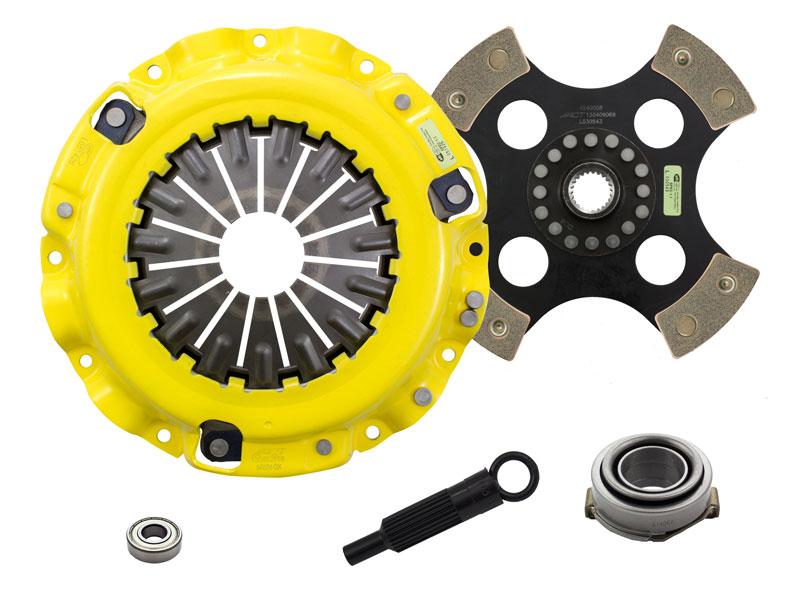

What's In The Box?

• Clutch Friction Disc (4240008)
• Clutch Alignment Tool (AT03)
• Clutch Pressure Plate (MZ010X)
• Clutch Pilot Bearing (PB1005)
• Clutch Release Bearing (RB091)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
