ACT Extreme Race Rigid 4 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTR4)

ACT Extreme Race Rigid 4 Pad Clutch Kit | Mazda Protege XT/Race (01) (Z66-XTR4)

Z66-XTR4

In stock

$615.00 USD
$759.00 USD $615.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 4 Pad Clutch Kit for the Mazda Protege XT (01) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The 4-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Built for racing and aggressive driving, this clutch kit delivers maximum power transfer, enhanced durability, and reliable operation in high-stress environments.

Designed specifically for the 2001 Mazda Protege XT with the Z66 chassis code, this clutch kit is suitable for street, track, or racing applications where high performance is required. It is a direct replacement for the stock clutch, offering a bolt-on installation with no modifications needed. The kit includes the pressure plate, race disc, and necessary components for a complete upgrade. Ideal for enthusiasts seeking increased clamping force and longevity, this clutch kit is engineered to handle high horsepower and aggressive driving styles, making it suitable for both daily driving and competitive racing scenarios.

Overview

ACT XT/Race Rigid 4 Pad Kit

Z66-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

  • Product Weight (lbs.): 12.3
  • Torque Capacity (ft/lbs.): 430
  • Torque Capacity Over OE: 1.29
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1993-1997 Ford Probe
  • 1993-2002 Mazda 626
  • 2002-2003 Mazda Protege5
  • 1993-1997 Mazda MX-6
  • 2001-2003 Mazda Protege

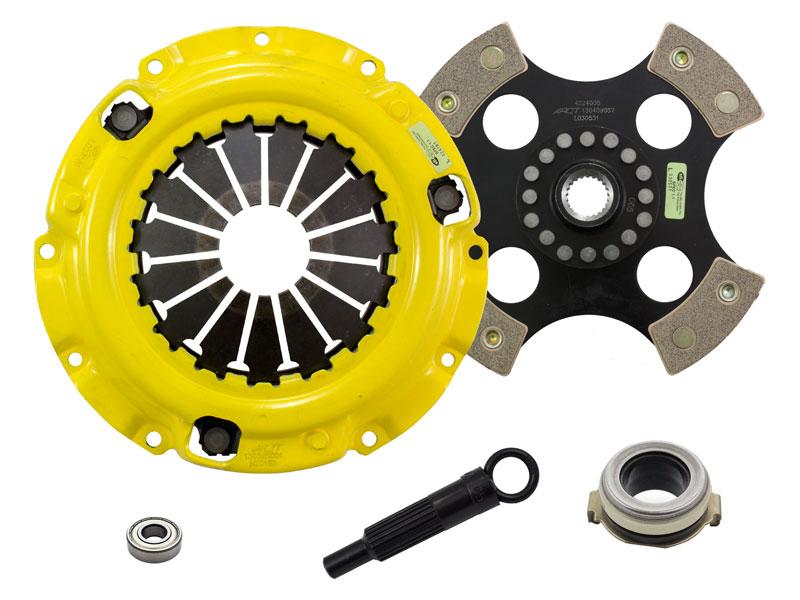

What's In The Box?

  • Clutch Friction Disc (4224005)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ018X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB110)

References

Warranty

  • Manufacturer 1 Year Warranty
