• ACT XT/Race Rigid 6 Pad Clutch Kit | BMW 135/335/435/535/Z4 (07-16) (BM14-XTR6)
1 1

ACT XT/Race Rigid 6 Pad Clutch Kit | BMW 135/335/435/535/Z4 (07-16) (BM14-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | BMW 135/335/435/535/Z4 (07-16) (BM14-XTR6)

BM14-XTR6

Out of stock

$916.00 USD
$1,131.00 USD $916.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

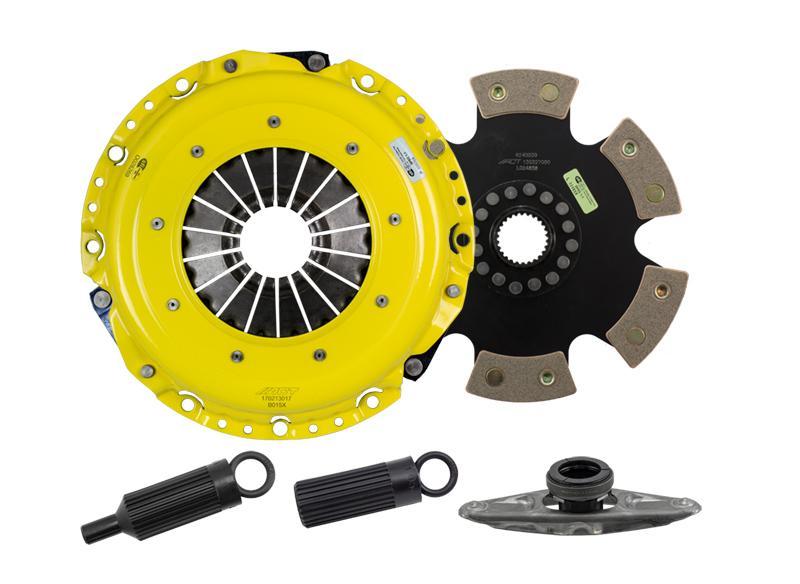

The ACT XT/Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Manufactured by ACT, this kit features an Xtreme pressure plate that enhances clamp load, reduces deflection, and extends clutch life. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad rigid race disc is constructed from high-quality ceramic friction material, providing excellent heat resistance and friction characteristics. This combination delivers superior torque capacity, precise engagement, and improved pedal feel, making it ideal for aggressive street and track use.

This clutch kit is compatible with BMW 135, 335, 435, 535, and Z4 models from 2007 to 2016. It is a direct replacement upgrade for stock clutch components, offering increased performance without sacrificing reliability. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Designed for high-performance driving, this clutch kit is suitable for street, track, and racing applications where maximum holding capacity and durability are required. Proper installation and alignment are recommended to achieve optimal performance and longevity.

Overview

XT/Race Rigid 6 Pad Clutch Kit by ACT

BM14-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 14.9
  • Torque Capacity (ft/lbs.): 702
  • Torque Capacity Over OE: 129%
  • Disc Material: Ceramic
  • Clutch Disc Diameter (Inches): 9.4
  • Clutch Disc Diameter (Millimeters): 240
  • Input Shaft Diameter (inches): 1.375
  • Pressure Plate Type: Xtreme

Benefits

  • Moderate to heavy pedal effort
  • Aggressive engagement
  • Increased gear rattle
  • Moderate friction life
  • Rigid design may increase spline wear
  • Carefully engineered for improved durability
  • High heat tolerance and reduced fade
  • 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2014-2016 BMW 435i xDrive
  • 2009-2015 BMW 335i xDrive
  • 2009-2010 BMW 535i xDrive
  • 2008-2008 BMW 535xi
  • 2008-2013 BMW 135i
  • 2008-2014 BMW 535i
  • 2014-2016 BMW 435i
  • 2009-2016 BMW Z4
  • 2007-2015 BMW 335i
  • 2007-2008 BMW 335xi
  • 2011-2013 BMW 335is

What's In The Box?

  • 1 - ACT XT/Race Rigid 6 Pad Clutch Kit

Warranty

  • ACT 1-Year Limited Warranty
