ACT Extreme Race Rigid 6 Pad Clutch Kit | Multiple Subaru Fitments (SB11-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Multiple Subaru Fitments (SB11-XTR6)

SB11-XTR6

In stock

$1,248.00 USD
$1,541.00 USD $1,248.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate utilizes an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad rigid race disc is constructed with high-quality ceramic friction material, providing excellent grip and heat resistance. This combination results in a clutch that offers superior holding capacity, precise engagement, and enhanced longevity, making it ideal for aggressive street and track use.

This clutch kit is compatible with a range of Subaru models, including various years and configurations, designed to serve as a direct upgrade or replacement for stock components. It is suitable for vehicles subjected to high horsepower and torque loads, such as those used in racing or spirited driving. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Intended for performance enthusiasts, this clutch assembly enhances power transfer and pedal feel, supporting aggressive driving styles and demanding applications without sacrificing reliability or durability.

Overview

XT/Race Rigid 6-Pad Clutch Kit by ACT

SB11-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life.

All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel - Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
  • Life - Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use - Recommended for race use only
  • ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 2006 - 2021 Subaru WRX
  • 2004 - 2008 Subaru Forester XT
  • 2005 - 2012 Subaru Legacy GT
  • 2005 - 2009 Subaru Outback XT
  • 2004 - 2006 Subaru Baja Turbo
  • 2005 - 2006 Saab 9-2X Aero

Specifications

  • Product Weight (lbs.): 30.1
  • Disc Type: Rigid Race Disc
  • Disc Material: Ceramic
  • Pad Quantity: 6
  • Pressure Plate Type: Xtreme
  • Torque Capacity (Over OE): 111%
  • Torque Capacity (ft/lbs.): 681

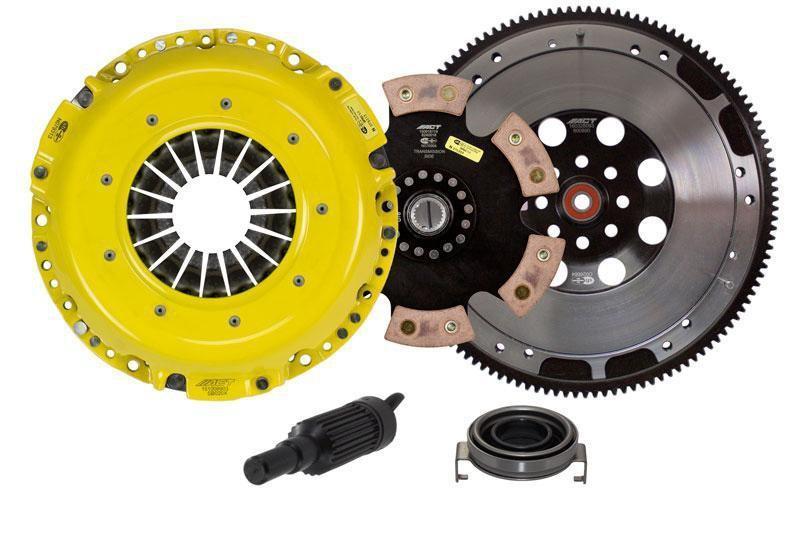

What's In The Box?

  • 1 - 6-Pad Rigid Race Disc
  • 1 - Xtreme Pressure Plate
  • 1 - Flywheel
  • 1 - Release Bearing
  • 1 - Alignment Tool

References

Warranty

  • Manufacturer Standard Warranty
