ACT Extreme Race Rigid 6 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC2-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | 1991 Geo Prizm XT/Race (TC2-XTR6)

TC2-XTR6

In stock

$574.00 USD
$709.00 USD $574.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6-Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit enhances clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme conditions. The 6-pad rigid race disc is constructed with high-quality ceramic friction material, providing excellent grip and heat resistance. This combination delivers superior torque capacity and responsiveness, making it ideal for racing and aggressive street driving.

Designed specifically for the 1991 Geo Prizm XT with a TC2 engine code, this clutch kit is a direct replacement for stock components. It is suitable for use in high-performance applications where maximum clamping force and durability are required. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Perfect for track use, racing, or spirited driving, this clutch kit provides reliable engagement and long-lasting performance under demanding conditions.

Overview

Xtreme Race Rigid 6-Pad Clutch Kit by ACT

TC2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

  • 1991 - 1997 Geo Prizm 1.6L
  • 1993 - 1997 Geo Prizm 1.8L
  • 2003 - 2008 Pontiac Vibe 1.8L
  • 2003 - 2006 Pontiac Vibe GT 1.8L
  • 1991 - 1993 Toyota Celica ST 1.6L
  • 1994 - 1997 Toyota Celica ST 1.8L
  • 2000 - 2005 Toyota Celica GT 1.8L
  • 2000 - 2005 Toyota Celica GTS 1.8L
  • 1992 - 1997 Toyota Corolla 1.6L
  • 1993 - 2013 Toyota Corolla 1.8L
  • 2003 - 2014 Toyota Matrix 1.8L
  • 2000 - 2005 Toyota MR2 Spyder 1.8L

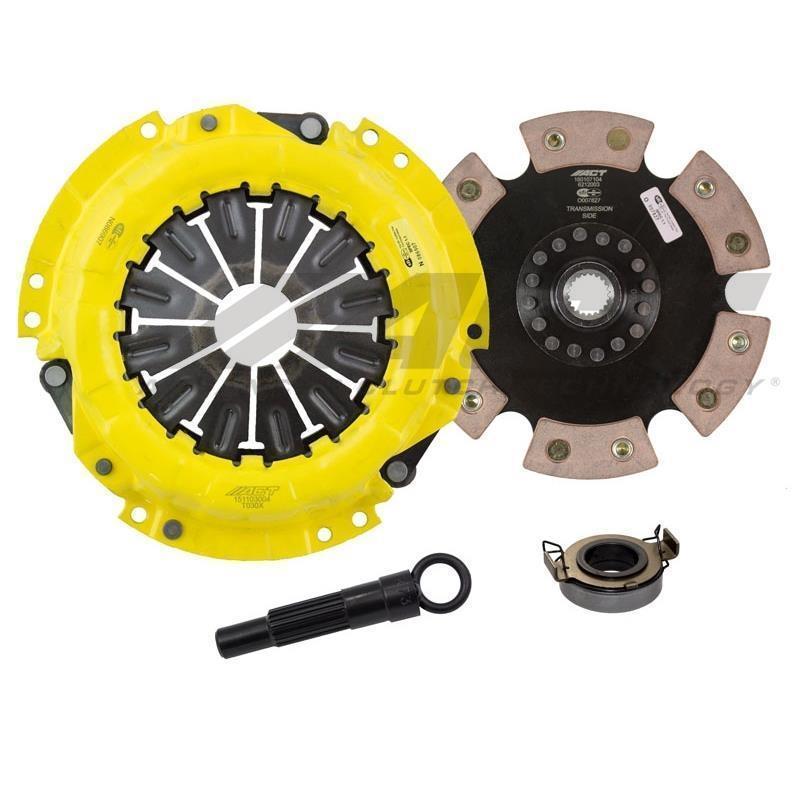

What's In The Box?

  • 1 - Xtreme Pressure Plate
  • 1 - Ceramic 6-Pad Rigid Disc
  • 1 - Release Bearing
  • 1 - Alignment Tool

References

Warranty

  • ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
