The ACT Extreme Race Rigid 6 Pad Clutch Kit for the Toyota Corona (1969-1970) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit is engineered to deliver maximum clamp load, reduced deflection, and extended clutch life. The pressure plate employs an exclusive diaphragm design that enhances durability and performance, with all diaphragms undergoing a four-stage heat-treating process to ensure reliability. The kit includes 6-pad rigid race discs constructed from high-quality ceramic friction materials, providing superior grip and heat resistance. Built for aggressive driving, this clutch kit offers exceptional durability and consistent engagement, making it suitable for racing or high-stress street applications.

Designed specifically for 1969-1970 Toyota Corona models, this clutch kit is a direct replacement for stock components, ensuring a straightforward installation. It is compatible with vehicles equipped with the original transmission and engine configurations, offering an upgrade for increased performance and longevity. The kit is ideal for track use, spirited driving, or any application requiring a robust clutch solution. Installation involves standard bolt-on procedures, and the components are engineered to withstand high torque loads and heat. This ACT clutch kit provides a reliable, high-performance upgrade for enthusiasts seeking enhanced clutch engagement and durability.

Overview

ACT XT/Race Rigid 6 Pad Kit

TK1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1969-1970 Toyota Corona

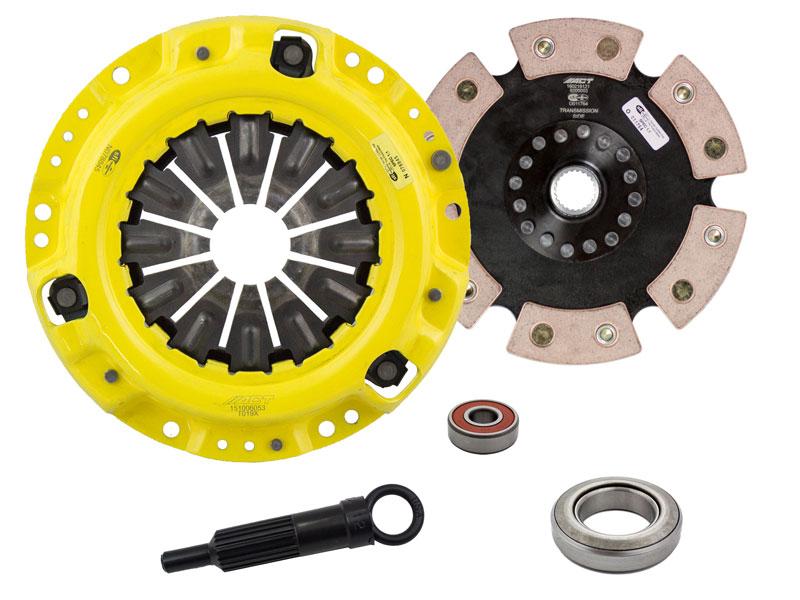

What's In The Box?

  • Clutch Friction Disc (6200003)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1004)
  • Clutch Release Bearing (RB010)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
