• ACT Extreme Race Rigid 6 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTR6)
1 1

ACT Extreme Race Rigid 6 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Toyota Corolla XT/Race (80-87) (TL1-XTR6)

TL1-XTR6

Out of stock

$643.00 USD
$643.00 USD $643.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The kit includes high-quality, ceramic friction material discs with a rigid 6-pad design, providing excellent grip and responsiveness. Built for racing and aggressive street use, this clutch kit delivers reliable power transfer and improved pedal feel, making it ideal for high-performance applications.

This clutch kit is compatible with Toyota Corolla XT/Race models from 1980 to 1987. It is a direct replacement for stock components, suitable for vehicles used in racing, track days, or spirited driving. Installation involves bolt-on replacement of the existing clutch assembly, with no additional modifications required. The kit includes the pressure plate, clutch disc, and necessary hardware, ensuring a complete upgrade. Designed for high clamp loads and heat resistance, this clutch assembly is perfect for drivers seeking maximum performance and durability in demanding environments.

Overview

ACT XT/Race Rigid 6 Pad Kit

TL1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 10.6
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1980-1987 Toyota Corolla

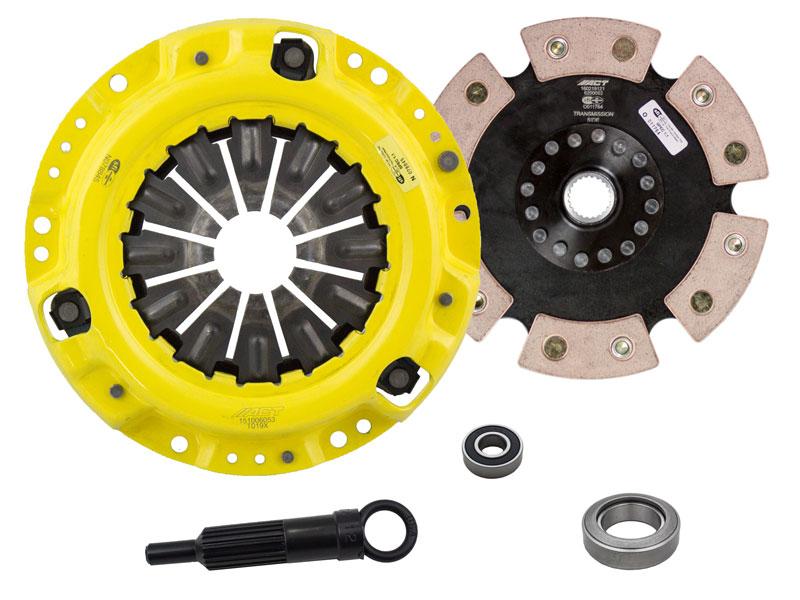

What's In The Box?

  • Clutch Friction Disc (6200003)
  • Clutch Alignment Tool (AT12)
  • Clutch Pilot Bearing (PB1001)
  • Clutch Release Bearing (RB201)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
