| Year | Make | Model |
|---|---|---|
| 1983 | Ford | Ranger Base |
| 1984 | Ford | Ranger S |
| 1983 - 1984 | Ford | Ranger XL |
| 1983 - 1984 | Ford | Ranger XLS |
| 1983 - 1984 | Ford | Ranger XLT |
ACT Extreme Race Rigid 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTR6)
ACT Extreme Race Rigid 6 Pad Clutch Kit | Ford Ranger (83-84) (FC2-XTR6)
SKU:FC2-XTR6
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT Extreme Race Rigid 6 Pad Clutch Kit for Ford Ranger (1983-1984) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The high-quality ceramic friction materials used in the 6-pad rigid race disc deliver superior grip and heat resistance, making it ideal for racing and aggressive driving applications. Built with precision cover stampings, the clutch components provide rigidity and reliability, ensuring maximum power transfer and smooth engagement.
This clutch kit is specifically engineered for 1983-1984 Ford Ranger models, compatible with vehicles equipped with appropriate engine configurations. It serves as a direct replacement or upgrade for stock clutch systems, suitable for street and track use where high clamp loads and durability are required. Installation involves replacing the existing clutch with this bolt-on assembly, which includes the pressure plate, disc, and necessary components for a complete upgrade. Designed for performance enthusiasts, this ACT clutch kit offers increased holding capacity and longevity for demanding driving scenarios, ensuring optimal performance and reliability during intense use.
Share
Overview
Overview
ACT XT/Race Rigid 6 Pad Kit
FC2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features
- Product Weight (lbs.): 13.6
- Torque Capacity (ft/lbs.): 450
- Torque Capacity Over OE: 1.18
- Pilot Bushing Included: Yes
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 8.8
- Clutch Disc Diameter (mm): 224
- Disc Material: Ceramic
- Input Spline Quantity: 22
- Input Shaft Diameter (in.): 0.9375
- Alignment Tool Included: Yes
Applications
- 1983-1984 Ford Ranger

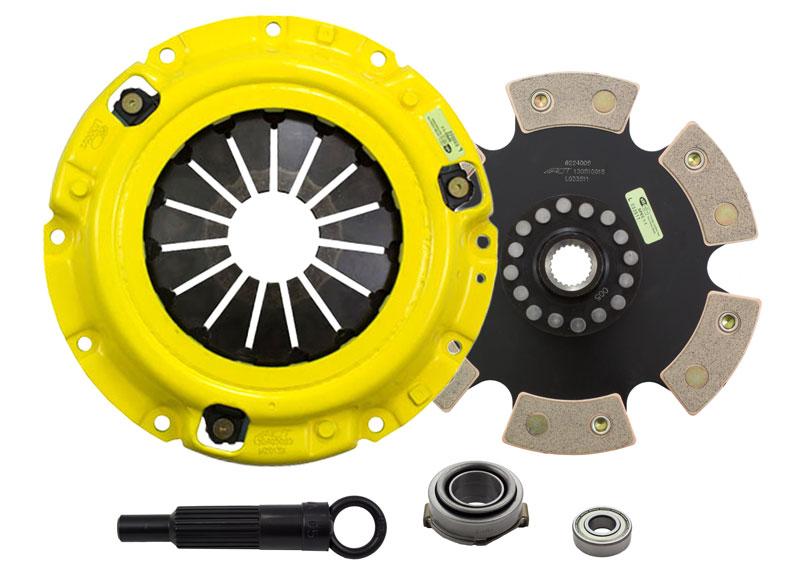

What's In The Box?
- Clutch Friction Disc (6224005)
- Clutch Alignment Tool (AT05)
- Clutch Pressure Plate (MZ013X)
- Clutch Pilot Bearing (PB1005)
- Clutch Release Bearing (RB091)
References
Warranty
- Manufacturer 1 Year Warranty
