ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda RX-7 (83-91) (ZX2-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda RX-7 (83-91) (ZX2-XTR6)

ZX2-XTR6

In stock

$707.00 USD
$707.00 USD $707.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Mazda RX-7 (83-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability to withstand aggressive driving and racing applications. The pressure plate employs an exclusive diaphragm design, which undergoes a four-stage heat-treating process to ensure maximum performance and longevity. The 6-pad rigid race disc utilizes high-quality ceramic friction materials, delivering superior grip and consistent engagement. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and stability, making this kit ideal for high-stress environments.

This clutch kit is specifically engineered for the Mazda RX-7 models from 1983 to 1991, ensuring a direct fit and reliable performance. It is suitable for street, track, and racing use, providing a robust upgrade over stock components. The kit is a bolt-on replacement, simplifying installation without the need for additional modifications. It includes all necessary components for a complete clutch upgrade, designed to handle increased power and torque. Whether for performance tuning or endurance racing, this ACT clutch kit delivers consistent, high-level performance for the RX-7 enthusiast.

Overview

ACT XT/Race Rigid 6 Pad Kit

ZX2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.6
  • Torque Capacity (ft/lbs.): 450
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1983-1991 Mazda RX-7

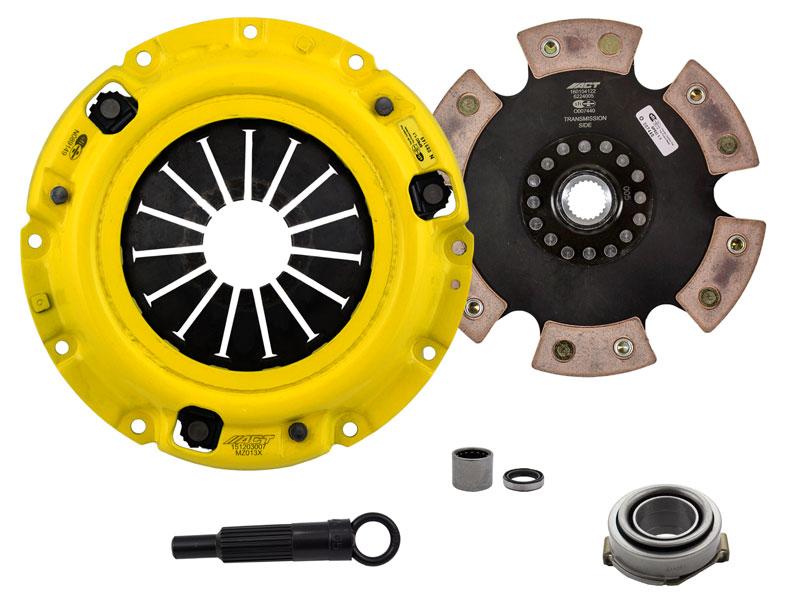

What's In The Box?

  • Clutch Friction Disc (6224005)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ013X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
