• ACT Extreme Race Rigid 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-XTR6)
1 1

ACT Extreme Race Rigid 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Ford Mustang (86-95) (FM4-XTR6)

FM4-XTR6

Out of stock

$564.00 USD
$696.00 USD $564.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit for Ford Mustang (1986-1995) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and maximizes clutch lifespan. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 6-pad rigid race disc is constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This combination delivers superior torque capacity and reliable engagement, making it ideal for racing and high-performance street applications.

Designed specifically for 1986-1995 Ford Mustangs, this clutch kit is a direct replacement for stock components and offers a significant upgrade in holding capacity. It is suitable for use in street, track, or drag racing scenarios where maximum power transfer is required. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. Compatibility is optimized for vehicles with modified or stock engines that demand increased clamping force and durability. This clutch kit is engineered to withstand high heat and aggressive driving, providing consistent performance and long service life.

Overview

ACT XT/Race Rigid 6 Pad Kit

FM4-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 21.2
  • Torque Capacity (ft/lbs.): 735
  • Torque Capacity Over OE: 1.18
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 10.5
  • Clutch Disc Diameter (mm): 266
  • Disc Material: Ceramic
  • Input Spline Quantity: 26
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1986-1995 Ford Mustang LX, GT, SVT Cobra

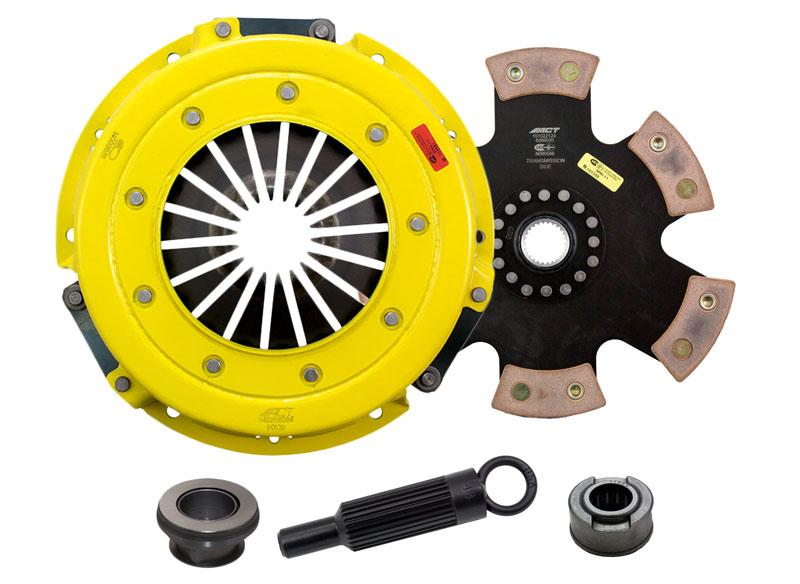

What's In The Box?

  • Clutch Friction Disc (6266020)
  • Clutch Alignment Tool (ATF048)
  • Clutch Pressure Plate (F013X)
  • Clutch Pilot Bearing (PB1019)
  • Clutch Release Bearing (RB1714)

References

Warranty

  • Manufacturer 1 Year Warranty
