| Year | Make | Model |
|---|---|---|
| 1987 - 1989 | Mazda | B2600 Base |
| 1987 - 1989 | Mazda | B2600 LX |
| 1987 - 1989 | Mazda | B2600 SE-5 |
ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTR6)
ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda B2600 (87-89) (ZT2-XTR6)
SKU:ZT2-XTR6
In stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The ACT XT/Race Rigid 6 Pad Clutch Kit for the Mazda B2600 (87-89) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life, making it suitable for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design, undergoes a four-stage heat-treating process for durability, and includes precision cover stampings to ensure rigidity and consistency. The 6-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent heat resistance and friction performance. This combination delivers increased torque capacity and reliable engagement for spirited driving and competitive use.
Designed specifically for 1987-1989 Mazda B2600 models, this clutch kit is a direct replacement upgrade for stock components. It is ideal for drivers seeking improved performance on the street or track, especially in high-stress scenarios. The kit is a bolt-on installation, requiring no additional modifications, and includes all necessary components for a complete clutch replacement. Compatibility is optimized for vehicles with similar specifications, ensuring a precise fit and reliable operation. This clutch kit is suited for enthusiasts aiming to maximize their vehicle’s power handling and durability under demanding conditions.
Share
Overview
Overview
ACT XT/Race Rigid 6 Pad Kit
ZT2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features
- Product Weight (lbs.): 15.2
- Torque Capacity (ft/lbs.): 560
- Torque Capacity Over OE: 1.3
- Pilot Bushing Included: Yes
- Pressure Plate Type: Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter (in.): 9.4
- Clutch Disc Diameter (mm): 240
- Disc Material: Ceramic
- Input Spline Quantity: 23
- Input Shaft Diameter (in.): 1
- Alignment Tool Included: Yes
Applications
- 1987-1989 Mazda B2600

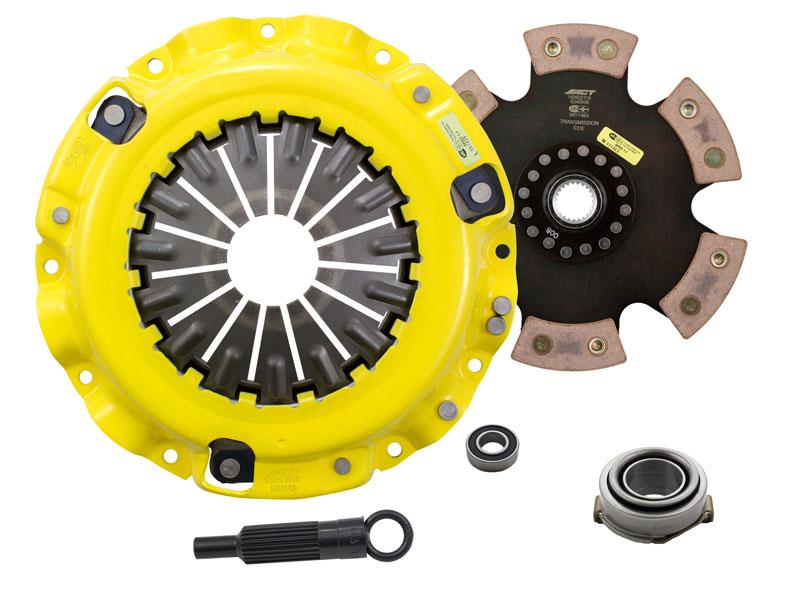

What's In The Box?
- Clutch Friction Disc (6240008)
- Clutch Alignment Tool (AT03)
- Clutch Pressure Plate (MZ010X)
- Clutch Pilot Bearing (PB1002)
- Clutch Release Bearing (RB091)
References
Warranty
- Manufacturer 1 Year Warranty
