ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda RX-7 (87-91) (Z65-XTR6)

Z65-XTR6

Out of stock

$581.00 USD
$717.00 USD $581.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Mazda RX-7 (87-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings provide added rigidity. The 6-pad rigid race disc incorporates high-quality ceramic friction materials, delivering superior grip and heat resistance essential for racing and aggressive driving.

This clutch kit is specifically engineered for 1987-1991 Mazda RX-7 models, offering a direct replacement for stock components. It is ideal for track use, high-performance street applications, and drivers seeking maximum clamping force. Installation involves bolt-on replacement of existing clutch components, with all necessary parts included in the kit. Designed to withstand high torque loads and intense driving conditions, this clutch assembly ensures reliable engagement and long-lasting performance for enthusiasts pushing their vehicles to the limit.

Overview

ACT XT/Race Rigid 6 Pad Kit

Z65-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Part Fitment Requirement: Flywheel requires counterweight (not included).
  • Product Weight (lbs.): 15.2
  • Torque Capacity (ft/lbs.): 560
  • Torque Capacity Over OE: 1.3
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1987-1991 Mazda RX-7

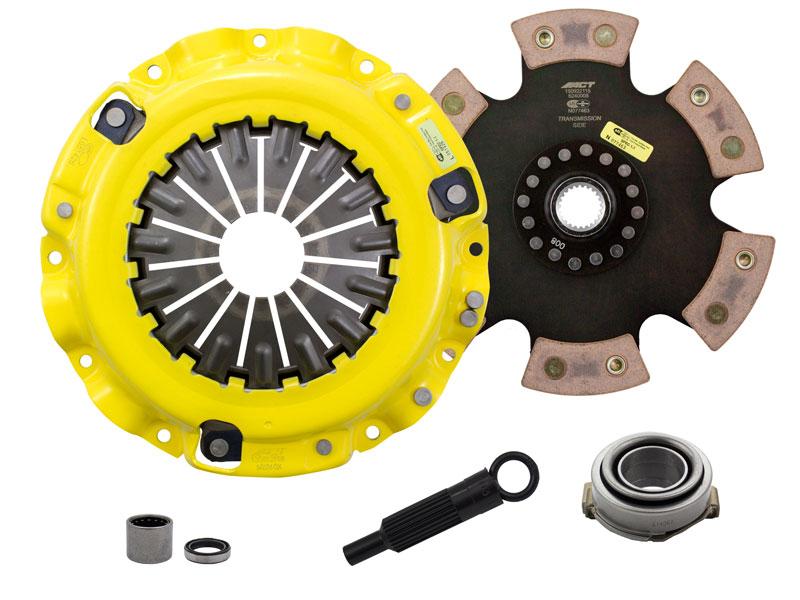

What's In The Box?

  • Clutch Friction Disc (6240008)
  • Clutch Alignment Tool (AT03)
  • Clutch Pressure Plate (MZ010X)
  • Clutch Pilot Bearing (PB1013)
  • Clutch Release Bearing (RB091)

References

Warranty

  • Manufacturer 1 Year Warranty
