ACT Extreme Race Rigid 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Honda Civic (89-91) (HW4-XTR6)

HW4-XTR6

Out of stock

$537.00 USD
$663.00 USD $537.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate components undergo a four-stage heat-treating process, ensuring durability and consistent performance under intense use. The 6-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. Overall, this clutch kit delivers superior engagement, increased torque capacity, and enhanced longevity for competitive and aggressive driving scenarios.

This clutch kit is specifically engineered for Honda Civic models from 1989 to 1991. It is a direct replacement and upgrade for stock clutch components, suitable for street, track, or racing applications where maximum performance is required. Installation involves replacing the existing clutch with this bolt-on assembly, offering a straightforward upgrade for enthusiasts seeking improved power transfer. The kit includes all necessary components for installation, ensuring a reliable and high-performance clutch setup tailored to high-demand driving environments.

Overview

ACT XT/Race Rigid 6 Pad Kit

HW4-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Input Spline Quantity: 20
  • Input Shaft Diameter (in.): 0.875
  • Alignment Tool Included: Yes
  • Part Fitment Requirement: Must be used with 90-01 SOHC flywheel.
  • Product Weight (lbs.): 10.4
  • Torque Capacity (ft/lbs.): 380
  • Torque Capacity Over OE: 1.48
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.3
  • Clutch Disc Diameter (mm): 212
  • Disc Material: Ceramic

Applications

  • 1989-1991 Honda Civic

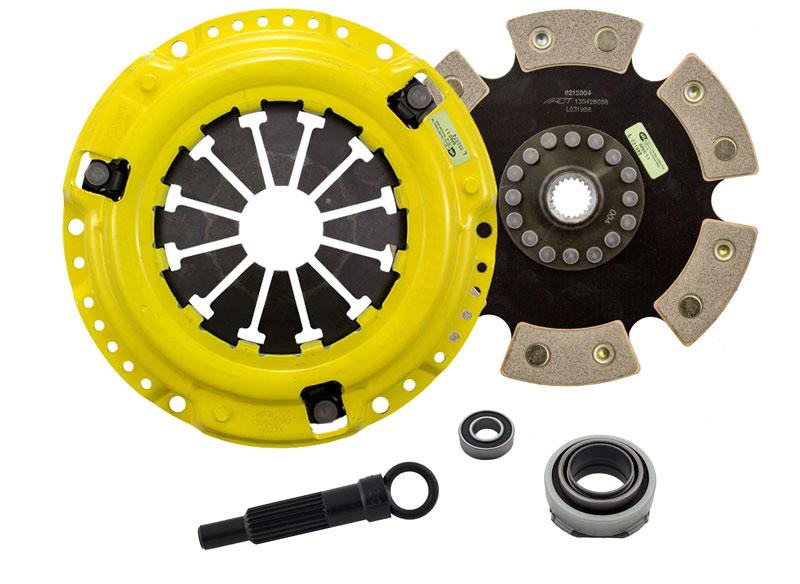

What's In The Box?

  • Clutch Friction Disc (6212004)
  • Clutch Alignment Tool (AT20)
  • Clutch Pressure Plate (H023X)
  • Clutch Pilot Bearing (PB1002)
  • Clutch Release Bearing (RB428)

References

Warranty

  • Manufacturer 1 Year Warranty
