ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota Celica (89-93) (TC4-XTR6)

SKU:TC4-XTR6

In stock

Regular price $631.00 USD
Regular price $779.00 USD Sale price $631.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Toyota Celica (89-93) is a high-performance clutch system designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life, making it suitable for aggressive street and race applications. The pressure plate employs an exclusive diaphragm design that undergoes a four-stage heat-treating process to ensure durability and consistent performance. The kit includes high-quality ceramic friction material on a 6-pad rigid race disc, providing excellent grip and heat resistance. Built with precision cover stampings, the components deliver rigidity and reliability for intense driving scenarios.

This clutch kit is specifically engineered for 1989 to 1993 Toyota Celica models, compatible with various engine configurations within this range. It serves as a direct replacement upgrade for stock clutch systems, offering increased holding capacity and improved engagement for high-performance use. Installation is designed to be straightforward for experienced technicians or enthusiasts familiar with clutch upgrades. The kit provides all necessary components for a complete upgrade, ensuring optimal performance on the street or track. Ideal for drivers seeking maximum durability and performance, this clutch kit enhances vehicle responsiveness and longevity under demanding conditions.

Overview

ACT XT/Race Rigid 6 Pad Kit

TC4-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1989-1993 Toyota Celica

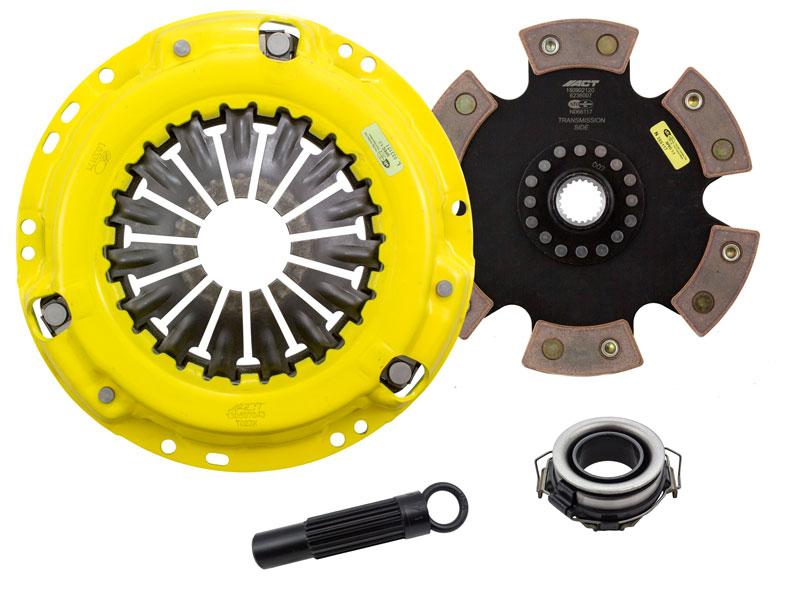

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
