• ACT XT/Race Rigid 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTR6)
1 1

ACT XT/Race Rigid 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Honda Prelude (90-91) (HP4-XTR6)

HP4-XTR6

Out of stock

$751.00 USD
$751.00 USD $751.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Honda Prelude (90-91) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings provide added rigidity. The 6-pad rigid race disc incorporates high-quality ceramic friction materials, delivering superior grip and responsiveness. This combination results in a clutch system capable of handling aggressive driving, track use, or high-stress applications with confidence.

Designed specifically for 1990-1991 Honda Prelude models, this clutch kit is a direct replacement for stock components, offering a significant upgrade in performance. It is suitable for street, track, or racing use, providing increased holding capacity and improved pedal feel. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with stock or modified engines, this clutch assembly is ideal for drivers seeking enhanced durability and performance in demanding driving scenarios.

Overview

ACT XT/Race Rigid 6 Pad Kit

HP4-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12.8
  • Torque Capacity (ft/lbs.): 410
  • Torque Capacity Over OE: 1.4
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.7
  • Clutch Disc Diameter (mm): 220
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1.03125
  • Alignment Tool Included: Yes

Applications

  • 1990-1991 Honda Prelude

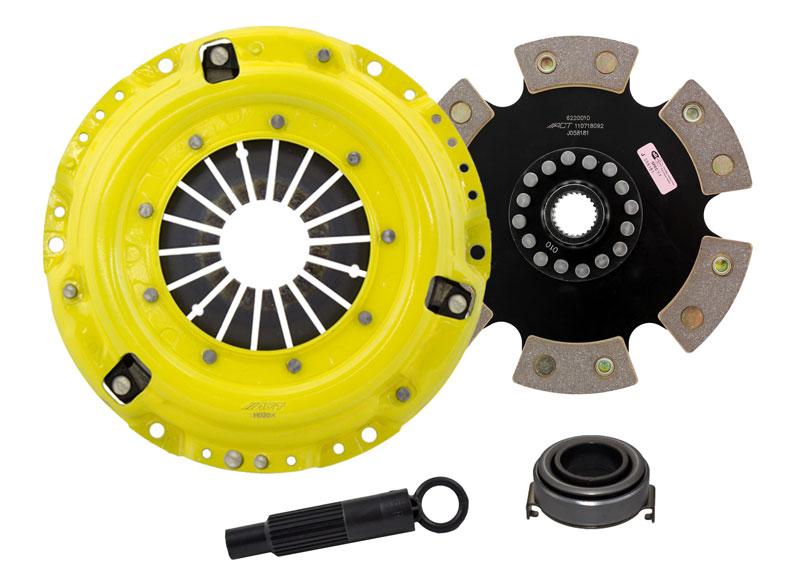

What's In The Box?

  • Clutch Friction Disc (6220010)
  • Clutch Alignment Tool (AT58)
  • Clutch Pressure Plate (H020X)
  • Clutch Release Bearing (RB817)

References

Warranty

  • Manufacturer 1 Year Warranty
