ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan Stanza (90-92) (NA1-XTR6)

NA1-XTR6

Out of stock

$556.00 USD
$687.00 USD $556.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for Nissan Stanza (90-92) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit provides increased clamp load, reduced deflection, and enhanced durability to withstand aggressive use. The pressure plate employs an exclusive diaphragm design, which has undergone a four-stage heat-treating process to ensure maximum performance and longevity. The 6-pad rigid race disc utilizes high-quality ceramic friction materials, delivering superior grip and consistent engagement. Constructed with precision cover stampings, the clutch components offer enhanced rigidity and stability, making this kit ideal for racing or high-stress applications.

This clutch kit is specifically engineered for 1990-1992 Nissan Stanza models, compatible with naturally aspirated engines. It serves as a direct replacement upgrade for stock clutch systems, providing improved torque capacity and pedal feel. The kit is suitable for street, track, or aggressive driving scenarios where durability and performance are critical. Installation involves standard bolt-on procedures, and the kit includes all necessary components for a complete upgrade. Designed to meet the demands of high-performance driving, this clutch kit ensures reliable operation and maximum power transfer for enthusiasts seeking a competitive edge.

Overview

ACT XT/Race Rigid 6 Pad Kit

NA1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1992 Nissan Stanza

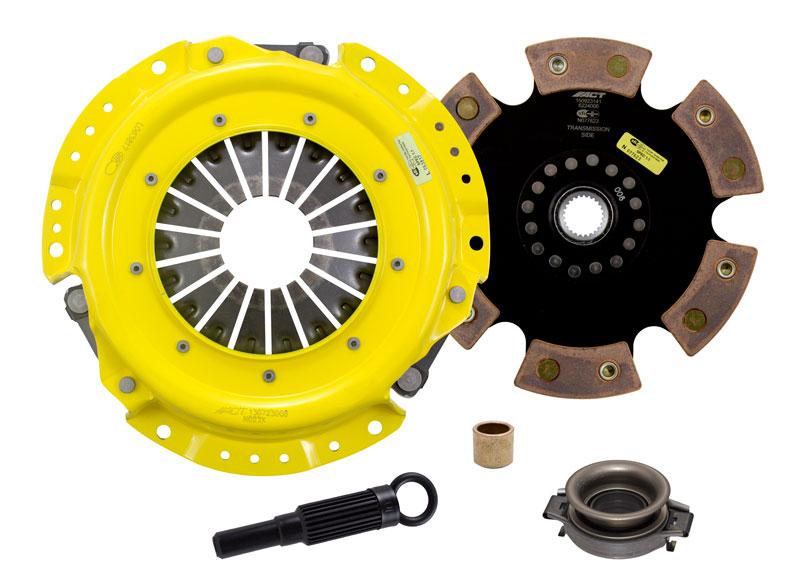

What's In The Box?

  • Clutch Friction Disc (6224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB816)

References

Warranty

  • Manufacturer 1 Year Warranty
