• ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTR6)
1 1

ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan 300ZX (90-96) (NX6-XTR6)

NX6-XTR6

Out of stock

$742.00 USD
$742.00 USD $742.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Nissan 300ZX (90-96) is a high-performance clutch system designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life through an exclusive diaphragm design and a four-stage heat-treating process. The high-quality ceramic friction materials used in the 6-pad rigid race discs ensure durability and consistent engagement, making it suitable for aggressive street and track use. Built with precision cover stampings, the pressure plate offers rigidity and stability under intense loads, providing reliable performance for serious enthusiasts.

This clutch kit is specifically engineered for 1990 to 1996 Nissan 300ZX models, compatible with various engine configurations. It serves as a direct replacement for stock components, offering increased holding capacity and improved heat dissipation. Ideal for high-performance applications, the kit is suitable for street, track, or racing environments where maximum durability and performance are required. Installation involves bolt-on replacement of the existing clutch assembly, and the kit includes all necessary components for a complete upgrade. This setup is perfect for drivers seeking enhanced clutch engagement and longevity in demanding driving scenarios.

Overview

ACT XT/Race Rigid 6 Pad Kit

NX6-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 17.8
  • Torque Capacity (ft/lbs.): 630
  • Torque Capacity Over OE: 1.23
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.4
  • Clutch Disc Diameter (mm): 240
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes

Applications

  • 1990-1996 Nissan 300ZX

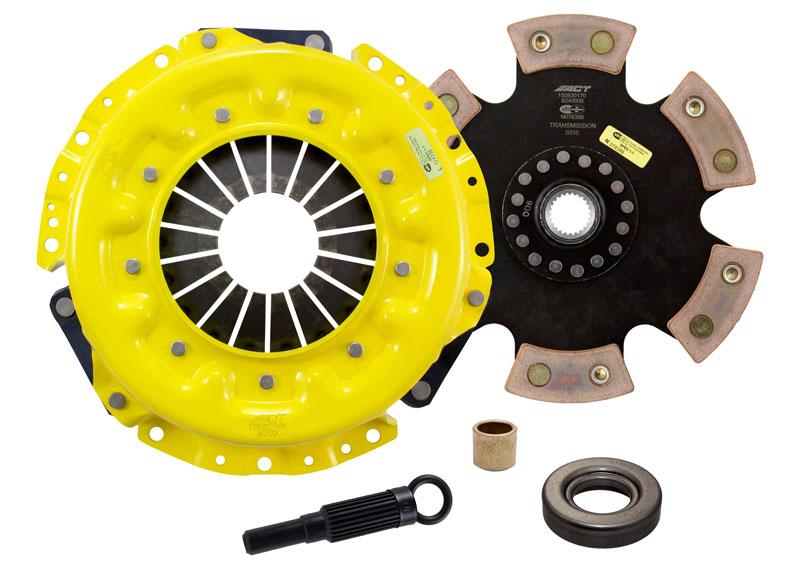

What's In The Box?

  • Clutch Friction Disc (6240006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N013X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB810)

References

Warranty

  • Manufacturer 1 Year Warranty
