• ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda Miata (90-05) (ZM2-XTR6)
1 1

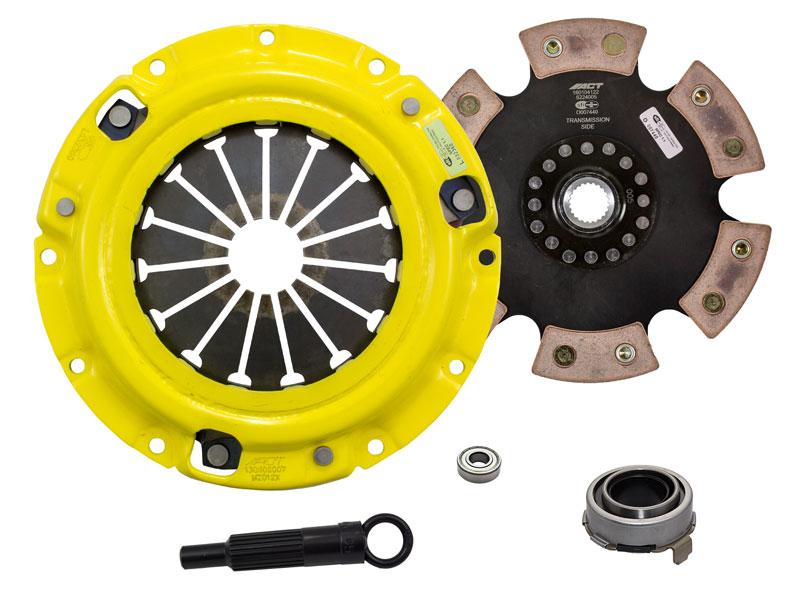

ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda Miata (90-05) (ZM2-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Mazda Miata (90-05) (ZM2-XTR6)

ZM2-XTR6

In stock

$605.00 USD
$747.00 USD $605.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for Mazda Miata (90-05) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and extends clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The included 6-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This kit is engineered for enthusiasts seeking maximum performance, reliability, and longevity in their clutch system.

Designed for 1990 to 2005 Mazda Miata models, this clutch kit is a direct replacement for stock components and ideal for street, track, or racing applications. It offers a robust upgrade for drivers demanding increased clamp force and durability under high-stress conditions. Installation is straightforward for those familiar with clutch replacement procedures, and the kit includes all necessary components for a complete upgrade. Suitable for vehicles with stock or modified engines, this clutch kit enhances power transfer and driving confidence in both daily and competitive environments.

Overview

ACT XT/Race Rigid 6 Pad Kit

ZM2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 12
  • Torque Capacity (ft/lbs.): 405
  • Torque Capacity Over OE: 1.26
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8
  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 22
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1990-2005 Mazda Miata

What's In The Box?

  • Clutch Friction Disc (6224005)
  • Clutch Alignment Tool (AT05)
  • Clutch Pressure Plate (MZ012X)
  • Clutch Pilot Bearing (PB1005)
  • Clutch Release Bearing (RB813)

References

Warranty

  • Manufacturer 1 Year Warranty
