• ACT Extreme Race Rigid 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-XTR6)
1 1

ACT Extreme Race Rigid 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-XTR6)

ACT Extreme Race Rigid 6 Pad Clutch Kit | Toyota Corolla (91-92) (TL3-XTR6)

TL3-XTR6

Out of stock

$666.00 USD
$666.00 USD $666.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT Extreme Race Rigid 6 Pad Clutch Kit for the Toyota Corolla (91-92) is a high-performance clutch system designed for demanding driving conditions. Featuring an Xtreme pressure plate, this kit enhances clamp load, reduces deflection, and extends clutch life. The pressure plate employs an exclusive diaphragm design, which has undergone a four-stage heat-treating process to ensure durability and consistent performance. The 6-pad rigid race discs are constructed with high-quality ceramic friction materials, providing excellent grip and heat resistance. This setup is ideal for racing or aggressive street driving, delivering maximum power transfer and reliability under stress.

Designed specifically for 1991-1992 Toyota Corolla models, this clutch kit is a direct replacement for stock components, offering a bolt-on installation. It is suitable for vehicles with high horsepower or those used in motorsport applications where durability and performance are critical. The kit includes all necessary components for installation, ensuring a seamless upgrade. Perfect for track days or spirited driving, this clutch system provides increased holding capacity and improved pedal feel, making it a reliable choice for performance enthusiasts seeking maximum clutch performance.

Overview

ACT XT/Race Rigid 6 Pad Kit

TL3-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 10.5
  • Torque Capacity (ft/lbs.): 365
  • Torque Capacity Over OE: 1.57
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 7.9
  • Clutch Disc Diameter (mm): 200
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 0.9375
  • Alignment Tool Included: Yes

Applications

  • 1991-1992 Toyota Corolla

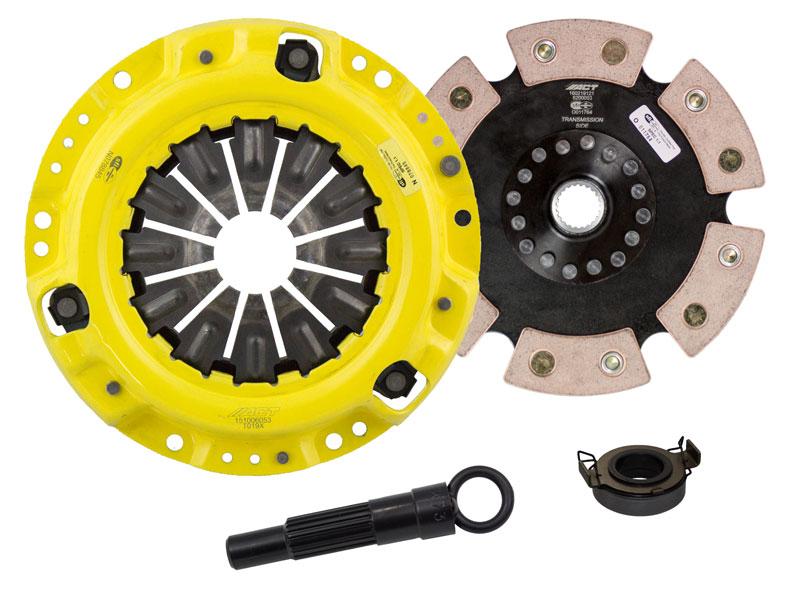

What's In The Box?

  • Clutch Friction Disc (6200003)
  • Clutch Alignment Tool (ATK73)
  • Clutch Release Bearing (RB840)
  • Clutch Pressure Plate (T019X)

References

Warranty

  • Manufacturer 1 Year Warranty
