• ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-XTR6)
1 1

ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Nissan 240SX (91-94) (NX4-XTR6)

NX4-XTR6

Out of stock

$548.00 USD
$677.00 USD $548.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for Nissan 240SX (91-94) is a high-performance clutch assembly designed for demanding driving conditions. This kit features an Xtreme pressure plate that utilizes an exclusive diaphragm design to increase clamp load, reduce deflection, and extend clutch life. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance, while precision cover stampings enhance rigidity. The included 6-pad rigid race disc is constructed with high-quality ceramic friction materials, providing superior grip and heat resistance for aggressive driving and racing applications. This combination delivers maximum power transfer, improved response, and long-lasting reliability for serious enthusiasts.

Designed for 1991–1994 Nissan 240SX models, including NX4 chassis with compatible engines, this clutch kit is a direct replacement upgrade for stock components. It is suitable for street, track, and racing use, offering increased clamping force and durability under high-stress conditions. The kit is a bolt-on installation, requiring no modifications for proper fitment. It includes all necessary components for a complete clutch replacement, ensuring optimal performance and engagement. Ideal for drivers seeking enhanced performance and reliability in demanding driving environments, this ACT clutch kit provides a robust solution for high-performance Nissan 240SX applications.

Overview

ACT XT/Race Rigid 6 Pad Kit

NX4-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Clutch Disc Diameter (mm): 224
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter (in.): 1
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 13.6
  • Torque Capacity (ft/lbs.): 475
  • Torque Capacity Over OE: 1.68
  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 8.8

Applications

  • 1991-1994 Nissan 240SX

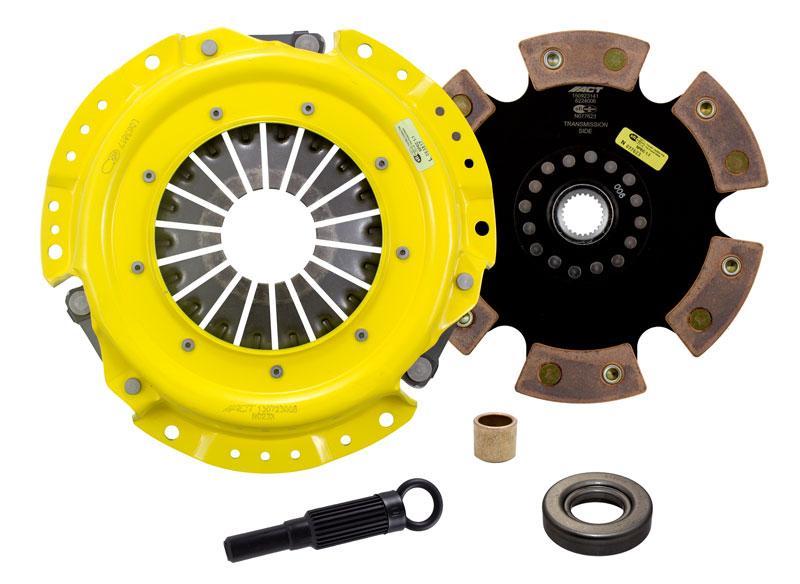

What's In The Box?

  • Clutch Friction Disc (6224006)
  • Clutch Alignment Tool (AT01)
  • Clutch Pressure Plate (N023X)
  • Clutch Pilot Bushing (PB1012)
  • Clutch Release Bearing (RB810)

References

Warranty

  • Manufacturer 1 Year Warranty
