ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTR6)

ACT XT/Race Rigid 6 Pad Clutch Kit | Toyota MR2 (91-95) (TM1-XTR6)

TM1-XTR6

Out of stock

$631.00 USD
$779.00 USD $631.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The ACT XT/Race Rigid 6 Pad Clutch Kit for the Toyota MR2 (1991-1995) is a high-performance clutch assembly designed for demanding driving conditions. Featuring an Xtreme pressure plate with an exclusive diaphragm design, this kit increases clamp load, reduces deflection, and enhances clutch longevity. The pressure plate undergoes a four-stage heat-treating process to ensure durability and consistent performance under extreme stress. The 6-pad rigid race disc utilizes high-quality ceramic friction materials, providing superior grip and heat resistance. Built for aggressive driving, this clutch kit delivers precise engagement and reliable power transfer, making it ideal for track use or high-performance street applications.

Designed specifically for 1991-1995 Toyota MR2 models, this clutch kit is a direct replacement for stock components, ensuring compatibility and ease of installation. It is suitable for vehicles with modified or stock engines used in racing, spirited driving, or demanding daily driving scenarios. The kit includes all necessary components for a complete upgrade, offering a bolt-on installation process. This clutch assembly is engineered to withstand high torque loads and intense heat, making it a reliable choice for drivers seeking maximum performance and durability in their vehicle's clutch system.

Overview

ACT XT/Race Rigid 6 Pad Kit

TM1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

  • Product Weight (lbs.): 13.5
  • Torque Capacity (ft/lbs.): 645
  • Torque Capacity Over OE: 1.18
  • Pressure Plate Type: Xtreme
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125
  • Alignment Tool Included: Yes

Applications

  • 1991-1995 Toyota MR2

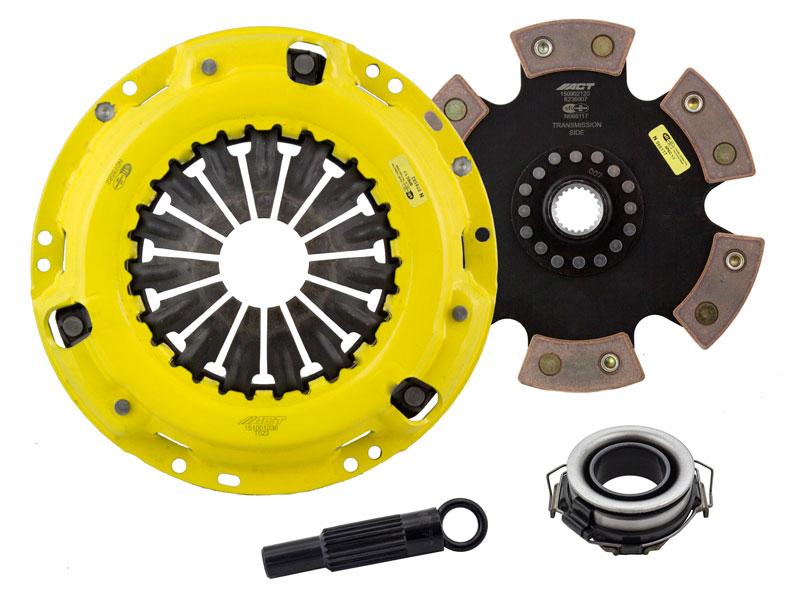

What's In The Box?

  • Clutch Friction Disc (6236007)
  • Clutch Alignment Tool (AT72)
  • Clutch Release Bearing (RB446)
  • Clutch Pressure Plate (T023X)

References

Warranty

  • Manufacturer 1 Year Warranty
